实现私有Yum仓库

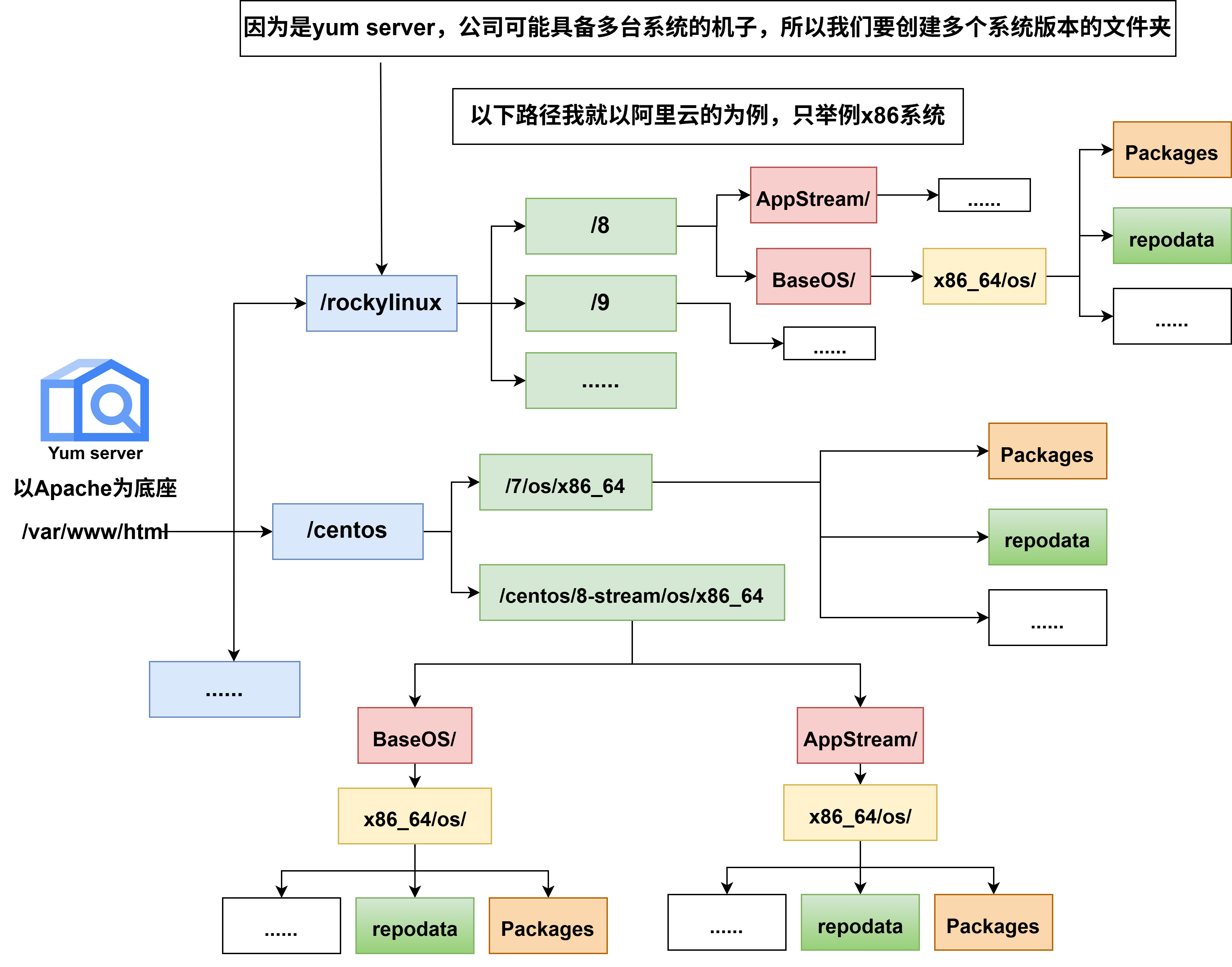

架构图

yum

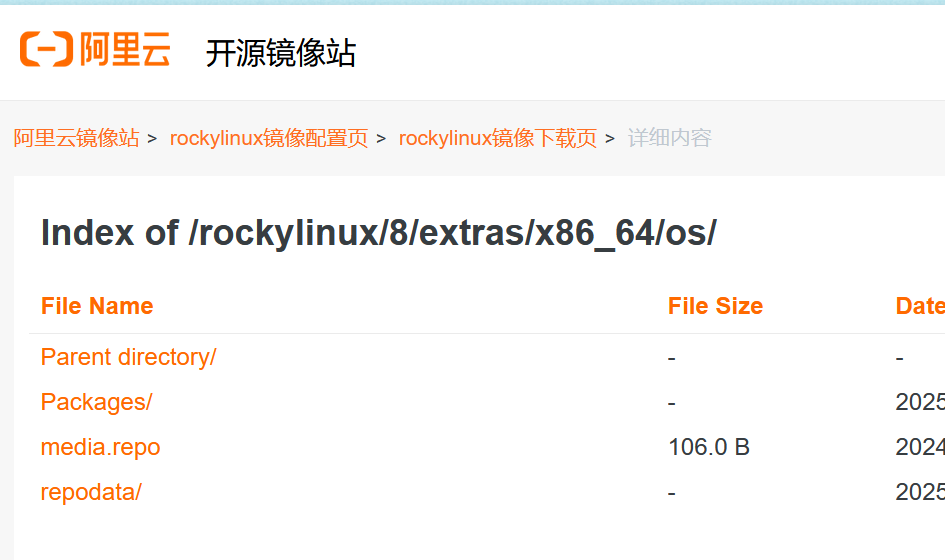

每个系统的最后的路径都不一样，所以要看清，尽量跟大厂路径对齐，起始最重要的就是Packages和repodata，你看阿里云的路径，我们只要走到有repedata的文件夹下，就说明走对了，不用往下走了

主机拓扑

主机名	ip	os
yum server	192.168.48.128	Rocker8.9
client1	192.168.48.11	Centos Stream 8
client2	192.168.48.10	Centos 7

前情提要：所有要进行上传yum源的机子都要挂载光盘，也可以选择网络备份

自动挂载光盘

#自动挂载
yum install autofs -y
systemctl enable --now autofs
sed -i '/^[[:space:]]*#.*misc.*\/etc\/auto.misc/ s/^#//' /etc/auto.master
systemctl restart autofs
ls /misc/cd

部署yum server

操作节点：【yum server】

Rocky8

yum install -y httpd
systemctl disable --now firewalld.service
systemctl enable --now httpd.service

#自己看前面的教程实现rocky8的光盘自动挂载

#将本地光盘中的内容CP到web目录中，给客户端使用
mkdir -p /var/www/html/rockylinux/8/{BaseOS,AppStream}
cp -r /misc/cd/BaseOS/* /var/www/html/rockylinux/8/BaseOS
cp -r /mnt/BaseOS/repodata /var/www/html/rockylinux/8/BaseOS/
cp -r /misc/cd/AppStream/* /var/www/html/rockylinux/8/AppStream
cp -r /mnt/AppStream/repodata /var/www/html/rockylinux/8/AppStream/
#这里可能有点慢，因为要拷贝的文件有点多

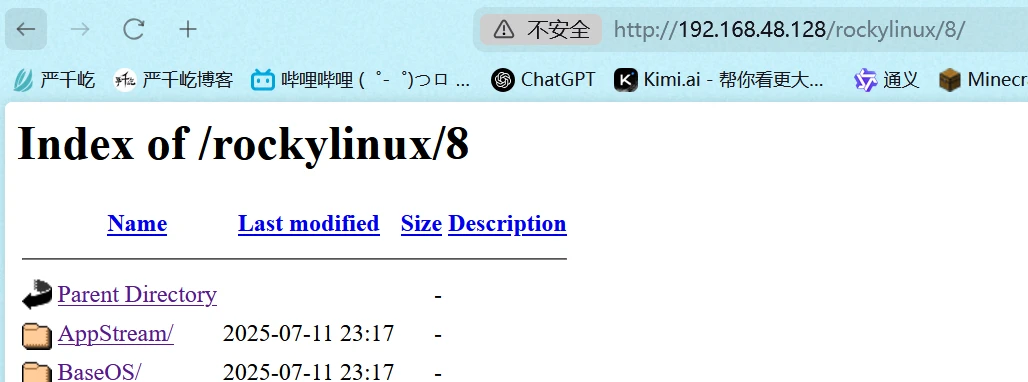

现在一些基本的文件都拷过去了访问网页就可以看见了

1	http://192.168.48.128/rockylinux/8/

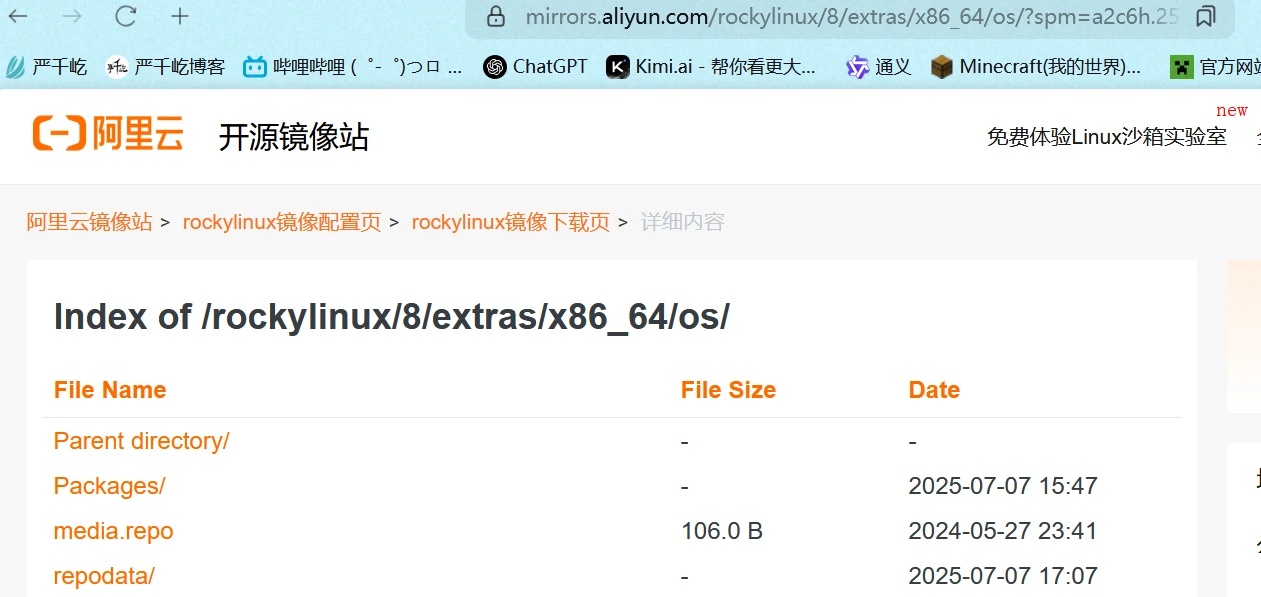

假设我还有个extras源想拷过去呢？前面那个是走本地，这个可以走网络，这时候就可以用到yum仓同步工具

1	https://mirrors.aliyun.com/rockylinux/8/extras/x86_64/os/

#备份自己的源
mkdir -p repo.bak
mv /etc/yum.repos.d/* repo.bak/
#这是私网yum server自己用的repo
cat > /etc/yum.repos.d/qianyios.repo<<"EOF2"
[AppStream]
name=AppStream
baseurl=file:///var/www/html/rockylinux/8/AppStream/x86_64/os/
gpgkey=/etc/pki/rpm-gpg/RPM-GPG-KEY-rockyofficial
gpgcheck=1
enabled=1
[BaseOS]
name=BaseOS
baseurl=file:///var/www/html/rockylinux/8/BaseOS/x86_64/os/
gpgkey=/etc/pki/rpm-gpg/RPM-GPG-KEY-rockyofficial
gpgcheck=1
enabled=1
[extras]
name=extras
baseurl=file:///var/www/html/rockylinux/8/extras/x86_64/os/
gpgkey=/etc/pki/rpm-gpg/RPM-GPG-KEY-rockyofficial
gpgcheck=1
enabled=1
EOF2
#这是公网用来同步的的repo
cat > /etc/yum.repos.d/qianyios-external-rocky8.repo<<"EOF2"
[AppStream-external-rocky8]
name=AppStream-external-rocky8
baseurl=https://mirrors.aliyun.com/rockylinux/8/AppStream/x86_64/os/
gpgkey=/etc/pki/rpm-gpg/RPM-GPG-KEY-rockyofficial
gpgcheck=1
enabled=1
[BaseOS-external-rocky8]
name=BaseOS-external-rocky8
baseurl=https://mirrors.aliyun.com/rockylinux/8/BaseOS/x86_64/os/
gpgkey=/etc/pki/rpm-gpg/RPM-GPG-KEY-rockyofficial
gpgcheck=1
enabled=1
[extras-external-rocky8]
name=extras-external-rocky8
baseurl=https://mirrors.aliyun.com/rockylinux/8/extras/x86_64/os/
gpgkey=/etc/pki/rpm-gpg/RPM-GPG-KEY-rockyofficial
gpgcheck=1
enabled=1
EOF2

#CentOS 8 dnf 工具集成 REPOID是那个repo里的[]里的名字
dnf reposync --repoid=REPOID --download-metadata -p /path
dnf reposync --help #查看帮助
#CentOS 7 以前版本，reposync工具来自于yum-utils包
reposync --repoid=REPOID --download-metadata -p /path

#创建好对应的路径，由于AppStream和BaseOS已经手动拉过去了，但是路径不对，我们就手动移一下
cd /var/www/html/rockylinux/8
mkdir -p AppStream/x86_64/os/
mkdir -p BaseOS/x86_64/os/
mv AppStream/{Packages,repodata} AppStream/x86_64/os/
mv BaseOS/{Packages,repodata} BaseOS/x86_64/os/
#开始同步，这里最后-p 路径的就不用加extras
mkdir -p /var/www/html/rockylinux/8/
yum reposync --repoid=extras-external-rocky8 --download-metadata -p /var/www/html/rockylinux/8/
#但是这个时候他的名字是extras-external-rocky8，所以你要把他下面的内容移动到extras去，还要注意有没有x86_64/os/
mv /var/www/html/rockylinux/8/{extras-external-rocky8,extras}
mkdir -p extras/x86_64/os/
mv extras/{Packages,repodata} extras/x86_64/os/

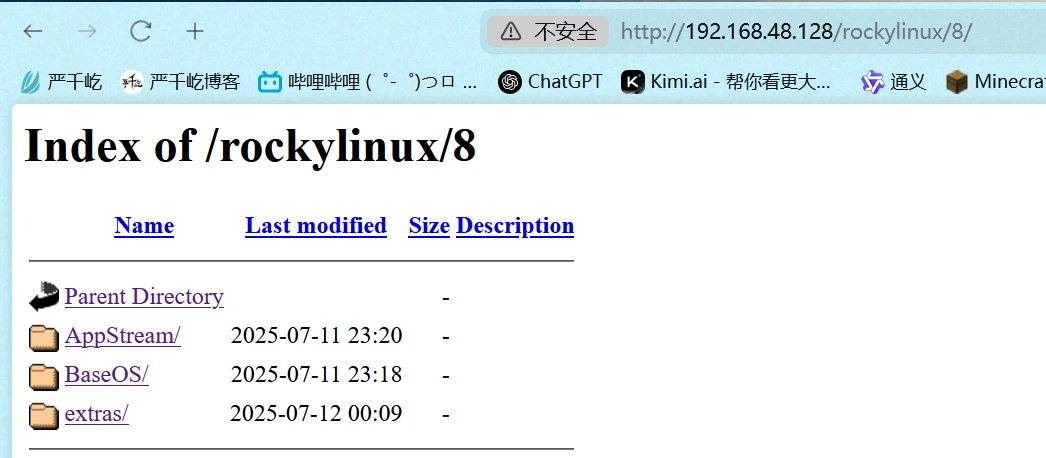

这就是成果

测试自己是否能创建缓存成功

#用的是私有repo，记得把其他的repo移走
[root@localhost 8]# yum clean all && yum makecache
75 个文件已删除
AppStream                                                   410 MB/s | 8.7 MB     00:00
BaseOS                                                      237 MB/s | 2.6 MB     00:00
extras                                                      6.4 MB/s |  15 kB     00:00
元数据缓存已建立。

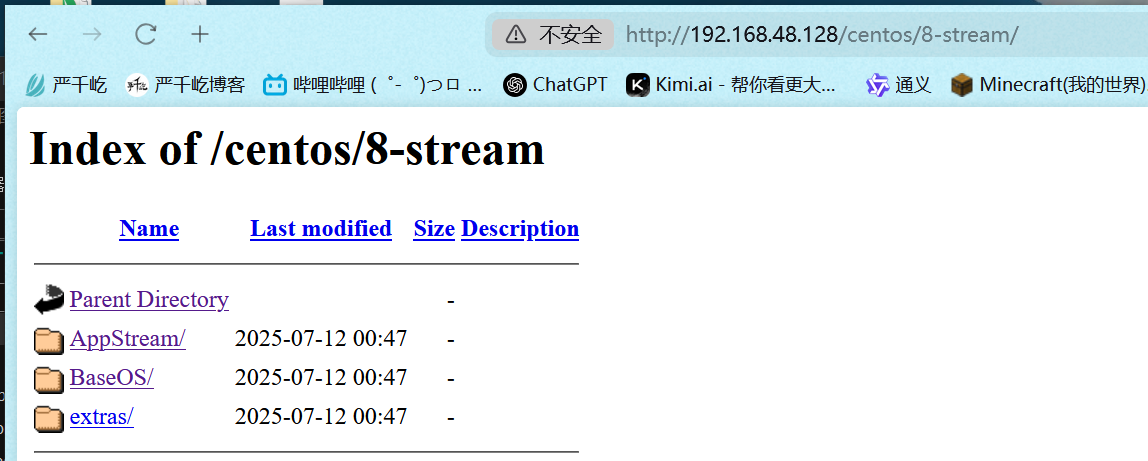

Centos Strem 8

远程同步

操作节点：【Centos Strem 8】

从Centos Strem 8复制到yumserver，如果你没有centos stream 8的机子，那就直接选网络同步

#自己看前面的教程实现rocky8的光盘自动挂载
#将本地光盘中的内容CP到yum server 的web目录中
scp -r /misc/cd/BaseOS 192.168.48.128:/var/www/html/centos/8-stream/
scp -r /misc/cd/AppStream 192.168.48.128:/var/www/html/centos/8-stream/

网络同步

操作节点：【yum server】

#公网
cat > /etc/yum.repos.d/qianyios-external--Centos-Strem-8.repo<<"EOF2"
[AppStream-external-Centos-Strem-8]
name=AppStream-external-Centos-Strem-8
baseurl=https://mirrors.aliyun.com/centos/8-stream/AppStream/x86_64/os/
gpgkey=https://mirrors.aliyun.com/centos/RPM-GPG-KEY-CentOS-Official
gpgcheck=1
enabled=1
[BaseOS-external-Centos-Strem-8]
name=BaseOS-external-Centos-Strem-8
baseurl=https://mirrors.aliyun.com/centos/8-stream/BaseOS/x86_64/os/
gpgkey=https://mirrors.aliyun.com/centos/RPM-GPG-KEY-CentOS-Official
gpgcheck=1
enabled=1
[extras-external-Centos-Strem-8]
name=extras-external-Centos-Strem-8
baseurl=https://mirrors.aliyun.com/centos/8-stream/extras/x86_64/os/
gpgkey=https://mirrors.aliyun.com/centos/RPM-GPG-KEY-CentOS-Official
gpgcheck=1
enabled=1
EOF2

#前面已经复制过了AppStream和BaseOS，这里就不做演示了,如果你手动之后还想网络同步，我的建议是删掉手动的文件夹再来拉去取网络的
#AppStream
yum reposync --repoid=AppStream-external-Centos-Strem-8 --download-metadata -p /var/www/html/centos/8-stream/
#BaseOS
yum reposync --repoid=BaseOS-external-Centos-Strem-8 --download-metadata -p /var/www/html/centos/8-stream/
#extras
yum reposync --repoid=extras-external-Centos-Strem-8 --download-metadata -p /var/www/html/centos/8-stream/
#注意修改名字哦
mv /var/www/html/centos/8-stream/{AppStream-external-Centos-Strem-8,AppStream}
mv /var/www/html/centos/8-stream/{BaseOS-external-Centos-Strem-8,BaseOS}
mv /var/www/html/centos/8-stream/{extras-external-Centos-Strem-8,extras}
cd /var/www/html/centos/8-stream/extras
mv Packages x86_64/os/
mv repodata x86_64/os/

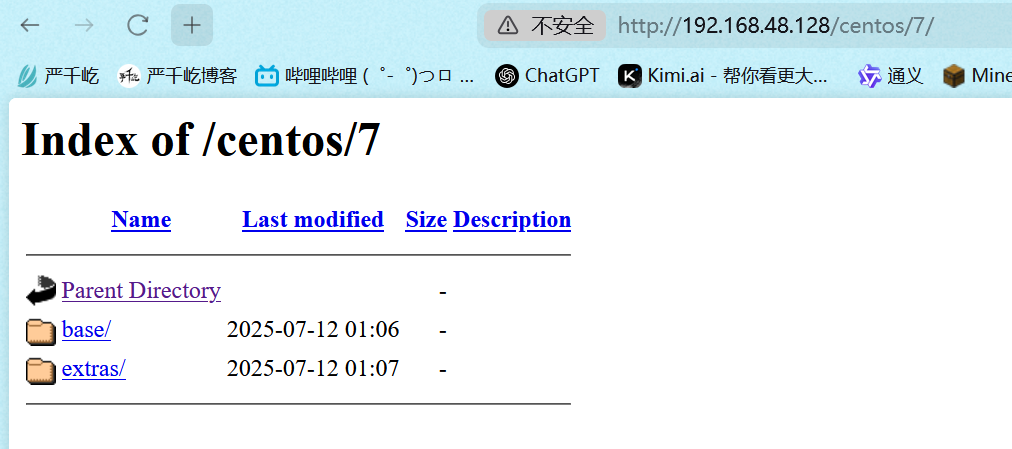

centos7

手动的我就不写了一个意思，这里我就写网络的

#公网
cat > /etc/yum.repos.d/qianyios-external-centos7.repo<<"EOF2"
[base-external-centos7]
name=BaseOS-external-centos7
baseurl=https://mirrors.aliyun.com/centos/7/os/x86_64
gpgkey=https://mirrors.aliyun.com/centos/7/os/x86_64/RPM-GPG-KEY-CentOS-7
gpgcheck=1
enabled=1
[extras-external-centos7]
name=extras-external-centos7
baseurl=https://mirrors.aliyun.com/centos/7/extras/x86_64/
gpgkey=https://mirrors.aliyun.com/centos/7/os/x86_64/RPM-GPG-KEY-CentOS-7
gpgcheck=1
enabled=1
EOF2

mkdir -p /var/www/html/centos/7/os/x86_64/
#bash
yum reposync --repoid=base-external-centos7 --download-metadata -p /var/www/html/centos/7/
#extras
yum reposync --repoid=extras-external-centos7 --download-metadata -p /var/www/html/centos/7/
#注意修改名字哦
mv /var/www/html/centos/7/{base-external-centos7,base}
cd /var/www/html/centos/7
mv base os/x86_64/

mv /var/www/html/centos/7/{extras-external-centos7,extras}
cd /var/www/html/centos/7/extras
mv Packages x86_64/
mv repodata x86_64/

客户端使用

操作节点：【Centos Stream 8】

#备份原有的repo
mkdir repo.bak
mv /etc/yum.repos.d/* repo.bak/

#公网
cat > /etc/yum.repos.d/qianyios-external-Centos-Strem-8.repo<<"EOF2"
[AppStream-external-Centos-Strem-8]
name=AppStream-external-Centos-Strem-8
baseurl=http://192.168.48.128/centos/8-stream/AppStream/x86_64/os/
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-centosofficial
gpgcheck=1
enabled=1
[BaseOS-external-Centos-Strem-8]
name=BaseOS-external-Centos-Strem-8
baseurl=http://192.168.48.128/centos/8-stream/BaseOS/x86_64/os/
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-centosofficial
gpgcheck=1
enabled=1
[extras-external-Centos-Strem-8]
name=extras-external-Centos-Strem-8
baseurl=http://192.168.48.128/centos/8-stream/extras/x86_64/os/
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-centosofficial
gpgcheck=1
enabled=1
EOF2
yum clean all && yum makecache
#成功
[root@qianyi ~]# yum clean all && yum makecache                                             13 files removed
AppStream-external-Centos-Strem-8                           205 MB/s | 7.9 MB     00:00
BaseOS-external-Centos-Strem-8                              158 MB/s | 2.7 MB     00:00
extras-external-Centos-Strem-8                              6.2 MB/s |  18 kB     00:00
Metadata cache created.
[root@qianyi ~]#

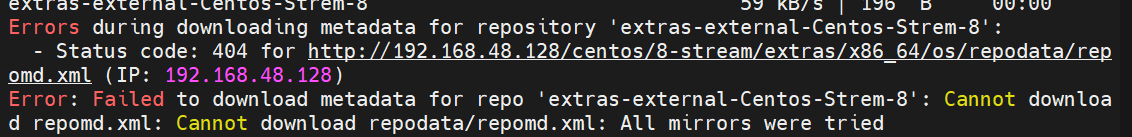

如果他报这个错，你要确保你的extras下的那个路径有没有repodata这个文件夹，或者看看路径对不对

操作节点：【centos7】

#备份原有的repo
mkdir repo.bak
mv /etc/yum.repos.d/* repo.bak/

cat > /etc/yum.repos.d/qianyios-external-centos7.repo<<"EOF2"
[base-external-centos7]
name=BaseOS-external-centos7
baseurl=http://192.168.48.128/centos/7/os/x86_64/
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-CentOS-7
gpgcheck=1
enabled=1
[extras-external-centos7]
name=extras-external-centos7
baseurl=http://192.168.48.128/centos/7/extras/x86_64/
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-CentOS-7
gpgcheck=1
enabled=1
EOF2
yum clean all && yum makecache

#成功
[root@localhost ~]# yum clean all && yum makecache
Loaded plugins: fastestmirror, langpacks
Cleaning repos: base-external-centos7 extras-external-centos7
Cleaning up list of fastest mirrors
Other repos take up 102 M of disk space (use --verbose for details)
Loaded plugins: fastestmirror, langpacks
Determining fastest mirrors
base-external-centos7                                                | 3.6 kB  00:00:00
extras-external-centos7                                              | 2.9 kB  00:00:00
(1/7): base-external-centos7/group_gz                                | 153 kB  00:00:00
(2/7): base-external-centos7/filelists_db                            | 3.3 MB  00:00:00
(3/7): base-external-centos7/other_db                                | 1.3 MB  00:00:00
(4/7): base-external-centos7/primary_db                              | 3.3 MB  00:00:00
(5/7): extras-external-centos7/primary_db                            | 253 kB  00:00:00
(6/7): extras-external-centos7/filelists_db                          | 305 kB  00:00:00
(7/7): extras-external-centos7/other_db                              | 154 kB  00:00:00
Metadata Cache Created
[root@localhost ~]#
