K8S高可用集群（内部etcd）

以下会用到的资源K8s1.28.2（内外部etcd高可用）所需资源

主机拓扑

主机名 ip1（NAT） 系统 磁盘 内存
master1 192.168.48.101 Centos7.9 100G 4G
master2 192.168.48.102 Centos7.9 100G 4G
master3 192.168.48.103 Centos7.9 100G 4G
node01 192.168.48.104 Centos7.9 100G 8G

基础配置

centos通过单独安装，非克隆。安装完后进行基本环境的配置，配置一下几个方面：

  1. 设置主机名
  2. 关闭NetworkManager、firewalld、dnsmasq、selinux
  3. 设置ens33
  4. 优化ssh
  5. 备份并新增清华yum源、epel源、docker-ce源、k8s源
  6. 更新yum源软件包缓存
  7. 修改history格式及记录数
  8. 添加hosts解析
  9. 关闭swap分区
  10. 安装chrony服务，并同步时间
  11. 配置limits.conf
  12. 安装必备工具
  13. 升级系统并重启

操作主机：[master1,master2,master3,node01]

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
#!/bin/bash
if [ $# -eq 2 ];then
  echo "设置主机名为：$1"
  echo "ens33设置IP地址为：192.168.48.$2"
else
  echo  "使用方法：sh $0 主机名 主机位"
  exit 2
fi

echo "--------------------------------------"
echo "1.正在设置主机名：$1"
hostnamectl set-hostname $1


echo "2.正在关闭NetworkManager、firewalld、dnsmasq、selinux"
systemctl disable firewalld &> /dev/null
systemctl disable NetworkManager &> /dev/null
systemctl disable dnsmasq &> /dev/null
systemctl stop firewalld
systemctl stop NetworkManager
systemctl stop dnsmasq
sed -i "s#SELINUX=enforcing#SELINUX=disabled#g" /etc/selinux/config
setenforce 0


echo "3.正在设置ens33：192.168.48.$2"
cat > /etc/sysconfig/network-scripts/ifcfg-ens33 <<EOF
TYPE=ensernet
BOOTPROTO=static
DEFROUTE=yes
NAME=ens33
DEVICE=ens33
ONBOOT=yes
IPADDR=192.168.48.$2
NETMASK=255.255.255.0
GATEWAY=192.168.48.2
DNS1=114.114.114.114
EOF
systemctl restart network


echo "4.优化ssh"
sed -i "s#\#UseDNS yes#UseDNS no#g" /etc/ssh/sshd_config
sed -i "s#GSSAPIAuthentication yes#GSSAPIAuthentication no#g" /etc/ssh/sshd_config
systemctl restart sshd

echo "5.备份并新增清华yum源、epel源、docker-ce源、k8s源"
rm -rf /etc/yum.repos.d/*
cat > /etc/yum.repos.d/Centos-Base.repo <<EOF
[base]
name=CentOS-$releasever - Base
baseurl=https://mirrors.tuna.tsinghua.edu.cn/centos/\$releasever/os/\$basearch/
gpgcheck=1
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-CentOS-7

[updates]
name=CentOS-$releasever - Updates
baseurl=https://mirrors.tuna.tsinghua.edu.cn/centos/\$releasever/updates/\$basearch/
gpgcheck=1
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-CentOS-7

[extras]
name=CentOS-$releasever - Extras
baseurl=https://mirrors.tuna.tsinghua.edu.cn/centos/\$releasever/extras/\$basearch/
gpgcheck=1
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-CentOS-7

[centosplus]
name=CentOS-$releasever - Plus
baseurl=https://mirrors.tuna.tsinghua.edu.cn/centos/\$releasever/centosplus/\$basearch/
gpgcheck=1
enabled=0
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-CentOS-7
EOF

cat > /etc/yum.repos.d/epel.repo <<EOF
[epel]
name=Extra Packages for Enterprise Linux 7 - \$basearch
baseurl=https://mirrors.tuna.tsinghua.edu.cn/epel/7/\$basearch
failovermensod=priority
enabled=1
gpgcheck=1
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-EPEL-7

[epel-debuginfo]
name=Extra Packages for Enterprise Linux 7 - \$basearch - Debug
baseurl=https://mirrors.tuna.tsinghua.edu.cn/epel/7/\$basearch/debug
failovermensod=priority
enabled=0
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-EPEL-7
gpgcheck=1

[epel-source]
name=Extra Packages for Enterprise Linux 7 - \$basearch - Source
baseurl=https://mirrors.tuna.tsinghua.edu.cn/epel/7/SRPMS
failovermensod=priority
enabled=0
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-EPEL-7
gpgcheck=1
EOF

cat > /etc/yum.repos.d/kubernetes.repo <<EOF
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/
enabled=1
gpgcheck=0
repo_gpgcheck=0
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF

curl -o /etc/yum.repos.d/docker-ce.repo https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo

echo "6.更新yum源软件包缓存"
 yum clean all && yum makecache


echo "7.修改history格式及记录数"
sed -i "s#HISTSIZE=1000##g" /etc/profile
cat >> /etc/profile <<EOF
shopt -s histappend
USER_IP=`who -u am i 2>/dev/null| awk '{print $NF}'|sed -e 's/[()]//g'`
export HISTFILE=~/.commandline_warrior
export HISTTIMEFORMAT="%Y-%m-%d %H:%M:%S  `whoami`@${USER_IP}: "
export HISTSIZE=200000
export HISTFILESIZE=1000000
export PROMPT_COMMAND="history -a"
EOF
source /etc/profile


echo "8.添加hosts解析"
cat >> /etc/hosts <<EOF
192.168.48.101 master1
192.168.48.102 master2
192.168.48.103 master3
192.168.48.104 node01
EOF


echo "9.关闭swap分区"
swapoff -a && sysctl -w vm.swappiness=0 &> /dev/null
sed -ri '/^[^#]*swap/s@^@#@' /etc/fstab


echo "10.安装ntpdate服务，并同步时间"
yum install chrony -y
systemctl start chronyd
systemctl enable chronyd
chronyc sources
chronyc sources

echo "11.配置limits.conf"
ulimit -SHn 65535
cat >> /etc/security/limits.conf <<EOF
* soft nofile 65536
* hard nofile 131072
* soft nproc 65535
* hard nproc 655350
* soft memlock unlimited
* hard memlock unlimited
EOF


echo "12.必备工具安装"
yum install wget psmisc vim net-tools telnet yum-utils device-mapper-persistent-data lvm2 git -y


echo "13.升级系统并重启"
yum update -y --exclude=kernel* && reboot

1
2
3
4
5
6
7
8
9
sh k8s_system_init.sh 主机名 主机位
[master1] sh k8s_system_init.sh master1 101

[master2] sh k8s_system_init.sh master2 102

[master3] sh k8s_system_init.sh master3 103

[node01] sh k8s_system_init.sh node01 104

配置ssh免密

操作节点[master1]

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
yum install -y sshpass
cat > sshmianmi.sh << "EOF"
#!/bin/bash
# 目标主机列表
hosts=("master1" "master2" "master3" "node01")
# 密码
password="123456"
# 生成 SSH 密钥对
ssh-keygen -t rsa -N "" -f ~/.ssh/id_rsa

# 循环遍历目标主机
for host in "${hosts[@]}"
do
    # 复制公钥到目标主机
    sshpass -p "$password" ssh-copy-id -o StrictHostKeyChecking=no "$host"

    # 验证免密登录
    sshpass -p "$password" ssh -o StrictHostKeyChecking=no "$host" "echo '免密登录成功'"
done
EOF

sh sshmianmi.sh

内核及ipvs模块配置

此步骤是升级内核、配置ipvs模块，开启一些k8s集群中必须的内核参数。配置一下几个方面：

  1. 下载安装包到/server/soft
  2. 安装kernel
  3. 更改内核启动顺序
  4. 安装ipvsadm
  5. 配置ipvs模块
  6. 开启k8s集群必须的内核参数
  7. 配置完内核，重启服务器

操作主机：[master1,master2,master3,node01]

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
vi kernel_update.sh

#!/bin/bash
echo "1.下载安装包到/server/soft"
mkdir -p /server/soft ; cd /server/soft
wget https://mirrors.aliyun.com/elrepo/kernel/el7/x86_64/RPMS/kernel-ml-6.6.3-1.el7.elrepo.x86_64.rpm
wget https://mirrors.aliyun.com/elrepo/kernel/el7/x86_64/RPMS/kernel-ml-devel-6.6.3-1.el7.elrepo.x86_64.rpm


echo "2.正在安装kernel"
yum localinstall -y kernel-ml*


echo "3.更改内核启动顺序"
grub2-set-default  0 && grub2-mkconfig -o /etc/grub2.cfg
grubby --args="user_namespace.enable=1" --update-kernel="$(grubby --default-kernel)"


echo "4.输出现在内核版本信息"
grubby --default-kernel


echo "5.安装ipvsadm"
yum install ipvsadm ipset sysstat conntrack libseccomp -y &> /dev/null


echo "6.配置ipvs模块"
modprobe -- ip_vs
modprobe -- ip_vs_rr
modprobe -- ip_vs_wrr
modprobe -- ip_vs_sh
modprobe -- nf_conntrack

cat >> /etc/modules-load.d/ipvs.conf <<EOF
ip_vs
ip_vs_lc
ip_vs_wlc
ip_vs_rr
ip_vs_wrr
ip_vs_lblc
ip_vs_lblcr
ip_vs_dh
ip_vs_sh
ip_vs_fo
ip_vs_nq
ip_vs_sed
ip_vs_ftp
ip_vs_sh
nf_conntrack
ip_tables
ip_set
xt_set
ipt_set
ipt_rpfilter
ipt_REJECT
ipip
EOF
systemctl enable --now systemd-modules-load.service &> /dev/null


echo "7.开启k8s集群必须的内核参数"
cat <<EOF > /etc/sysctl.d/k8s.conf
net.ipv4.ip_forward = 1
net.bridge.bridge-nf-call-iptables = 1
net.bridge.bridge-nf-call-ip6tables = 1
fs.may_detach_mounts = 1
net.ipv4.conf.all.route_localnet = 1
vm.overcommit_memory=1
vm.panic_on_oom=0
fs.inotify.max_user_watches=89100
fs.file-max=52706963
fs.nr_open=52706963
net.netfilter.nf_conntrack_max=2310720

net.ipv4.tcp_keepalive_time = 600
net.ipv4.tcp_keepalive_probes = 3
net.ipv4.tcp_keepalive_intvl =15
net.ipv4.tcp_max_tw_buckets = 36000
net.ipv4.tcp_tw_reuse = 1
net.ipv4.tcp_max_orphans = 327680
net.ipv4.tcp_orphan_retries = 3
net.ipv4.tcp_syncookies = 1
net.ipv4.tcp_max_syn_backlog = 16384
net.ipv4.ip_conntrack_max = 65536
net.ipv4.tcp_max_syn_backlog = 16384
net.ipv4.tcp_timestamps = 0
net.core.somaxconn = 16384
EOF
sysctl --system


echo "8.配置完内核，重启服务器！"
reboot

1
sh kernel_update.sh

检查ipvs加载、内核版本验证

1
2

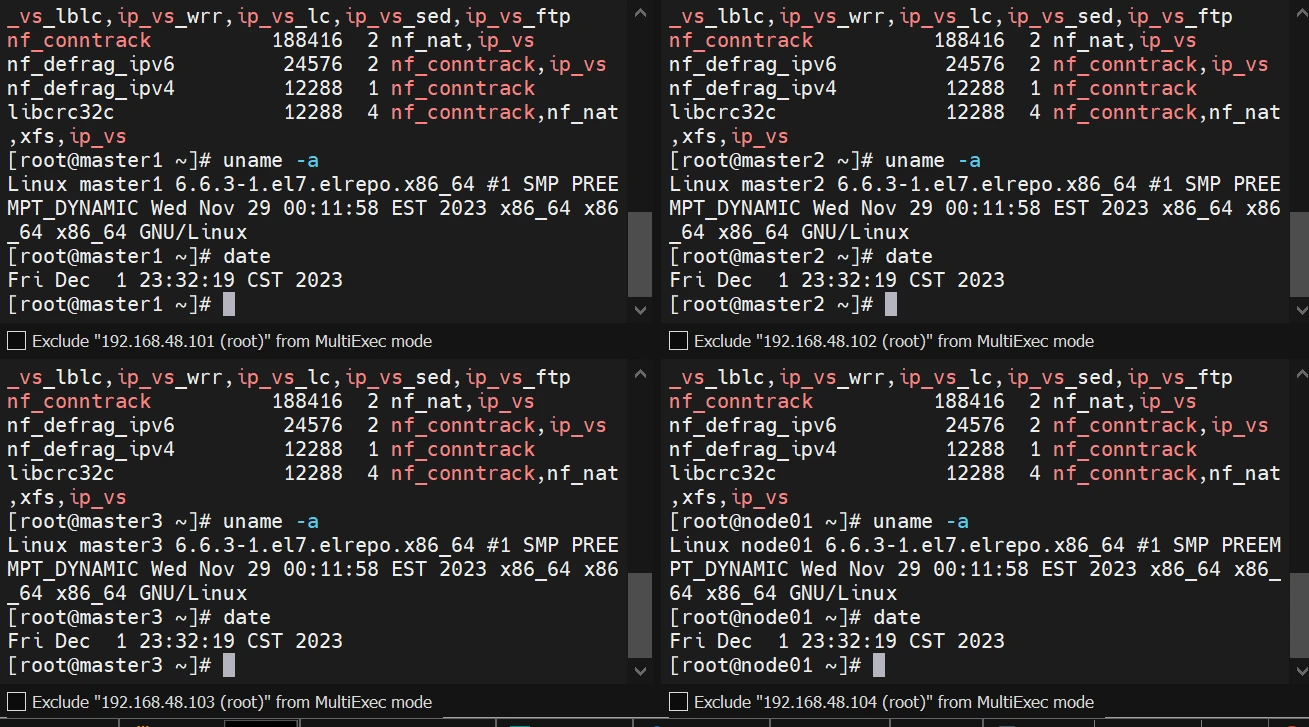

lsmod | grep --color=auto -e ip_vs -e nf_conntrack
uname -a

image-20231201233238841

高可用组件安装

haproxy配置

操作节点：[master1，master2,master3]

1
yum install keepalived haproxy -y

所有Master节点配置HAProxy，所有Master节点的HAProxy配置相同。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
操作节点：[master1，master2]
cat > /etc/haproxy/haproxy.cfg <<"EOF"

global
  maxconn  2000
  ulimit-n  16384
  log  127.0.0.1 local0 err
  stats timeout 30s

defaults
  log global
  mode  http
  option  httplog
  timeout connect 5000
  timeout client  50000
  timeout server  50000
  timeout http-request 15s
  timeout http-keep-alive 15s

frontend monitor-in
  bind *:33305
  mode http
  option httplog
  monitor-uri /monitor

frontend k8s-master
  bind 0.0.0.0:16443
  bind 127.0.0.1:16443
  mode tcp
  option tcplog
  tcp-request inspect-delay 5s
  default_backend k8s-master

backend k8s-master
  mode tcp
  option tcplog
  option tcp-check
  balance roundrobin
  default-server inter 10s downinter 5s rise 2 fall 2 slowstart 60s maxconn 250 maxqueue 256 weight 100
  server master1   192.168.48.101:6443  check
  server master2   192.168.48.102:6443  check
  server master3   192.168.48.103:6443  check
EOF

Keepalived配置

操作节点：[master1，master2,master3]

所有Master节点配置Keepalived，以下三个Master节点配置注意ip和网卡。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
操作节点：[master1]

cat >/etc/keepalived/keepalived.conf  <<"EOF"

! Configuration File for keepalived
global_defs {
    router_id LVS_DEVEL
script_user root
    enable_script_security
}
vrrp_script chk_apiserver {
    script "/etc/keepalived/check_apiserver.sh"
    interval 5
    weight -5
    fall 2
rise 1
}
vrrp_instance VI_1 {
    state MASTER
    interface ens33
    mcast_src_ip 192.168.48.101
    virtual_router_id 51
    priority 101
    advert_int 2
    authentication {
        auth_type PASS
        auth_pass K8SHA_KA_AUTH
    }
    virtual_ipaddress {
        192.168.48.200
    }
    track_script {
       chk_apiserver
    }
}
EOF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
操作节点：[master2]
cat >/etc/keepalived/keepalived.conf  <<"EOF"

! Configuration File for keepalived
global_defs {
    router_id LVS_DEVEL
script_user root
    enable_script_security
}
vrrp_script chk_apiserver {
    script "/etc/keepalived/check_apiserver.sh"
    interval 5
    weight -5
    fall 2
rise 1
}
vrrp_instance VI_1 {
    state BACKUP
    interface ens33
    mcast_src_ip 192.168.48.102
    virtual_router_id 51
    priority 100
    advert_int 2
    authentication {
        auth_type PASS
        auth_pass K8SHA_KA_AUTH
    }
    virtual_ipaddress {
        192.168.48.200
    }
    track_script {
       chk_apiserver
    }
}
EOF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
操作节点：[master3]
cat >/etc/keepalived/keepalived.conf  <<"EOF"

! Configuration File for keepalived
global_defs {
    router_id LVS_DEVEL
script_user root
    enable_script_security
}
vrrp_script chk_apiserver {
    script "/etc/keepalived/check_apiserver.sh"
    interval 5
    weight -5
    fall 2
rise 1
}
vrrp_instance VI_1 {
    state BACKUP
    interface ens33
    mcast_src_ip 192.168.48.103
    virtual_router_id 51
    priority 99
    advert_int 2
    authentication {
        auth_type PASS
        auth_pass K8SHA_KA_AUTH
    }
    virtual_ipaddress {
        192.168.48.200
    }
    track_script {
       chk_apiserver
    }
}
EOF

配置Keepalived健康检查文件

操作节点：[master1，master2,master3]

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
cat > /etc/keepalived/check_apiserver.sh <<"EOF"
 #!/bin/bash
 err=0
 for k in $(seq 1 3)
 do
    check_code=$(pgrep haproxy)
    if [[ $check_code == "" ]]; then
        err=$(expr $err + 1)
        sleep 1
        continue
    else
        err=0
        break
    fi
 done

 if [[ $err != "0" ]]; then
    echo "systemctl stop keepalived"
    /usr/bin/systemctl stop keepalived
    exit 1
 else
    exit 0
 fi
EOF

chmod +x /etc/keepalived/check_apiserver.sh

启动haproxy和keepalived

1
2
3
4
操作节点：[master，master2,master3]
systemctl daemon-reload
systemctl enable --now haproxy
systemctl enable --now keepalived

测试集群负载均衡高可用

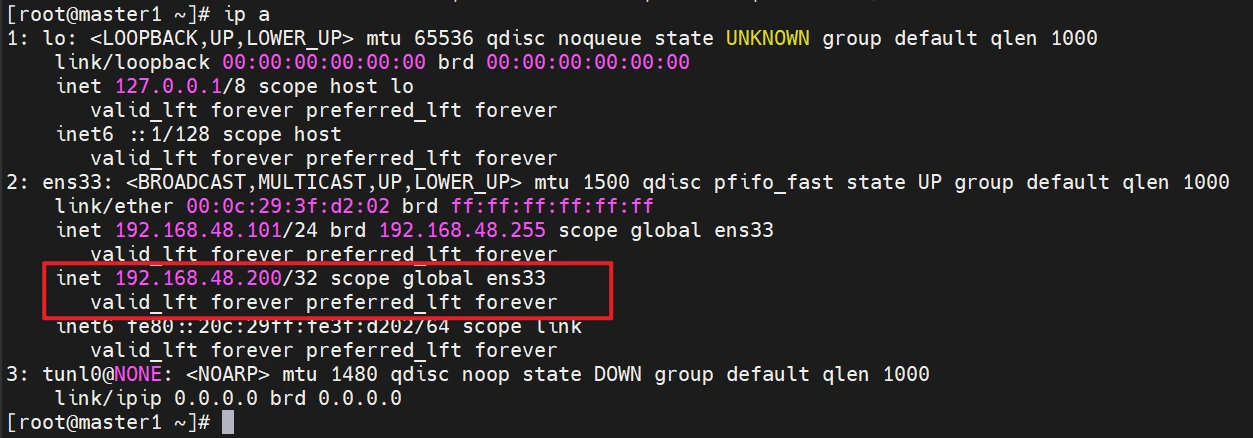

查看master1的vip

1
ip a

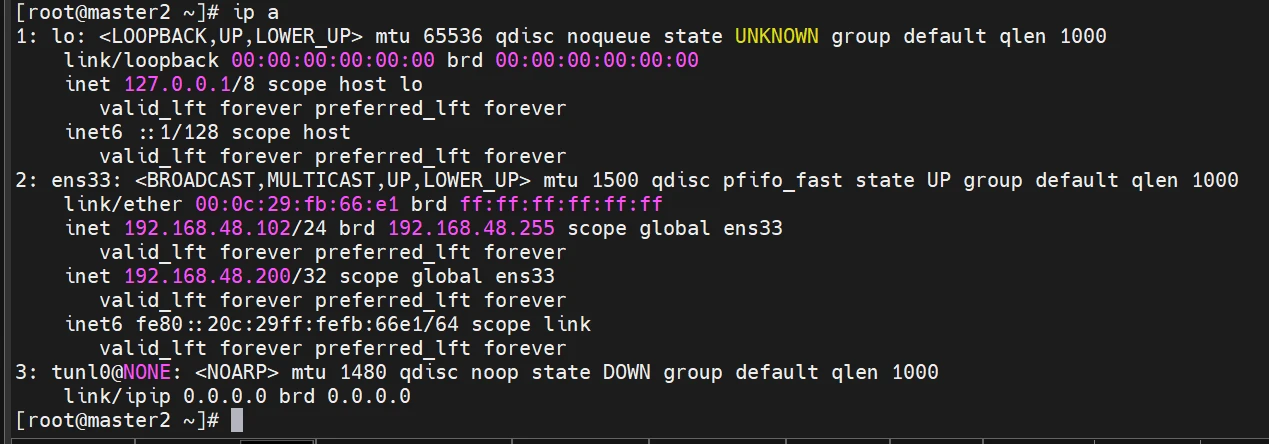

image-20231109232708584

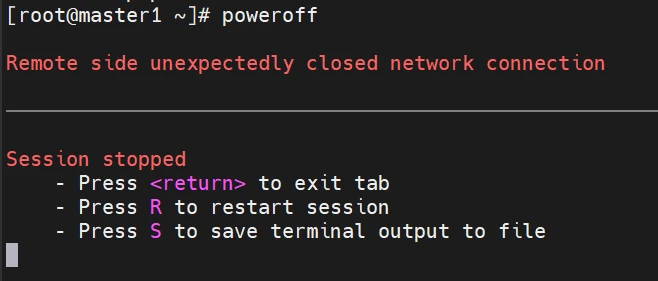

模拟master1的宕机测试，看看vip会不会漂移到master2去

1
[master1] poweroff

image-20231109232803276

这时候查看master2的ip列表

1
[master2] poweroff

image-20231109232825999

结论：这时可以知道，负载均衡集群成功，当master1出现宕机情况，vip会从master1漂移到master2

docker安装

安装docker

操作节点[master1，master2，master3,node01]

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
wget https://download.docker.com/linux/static/stable/x86_64/docker-24.0.7.tgz
tar xf docker-*.tgz
cp docker/* /usr/bin/
#创建containerd的service文件,并且启动
cat >/etc/systemd/system/containerd.service <<EOF
[Unit]
Description=containerd container runtime
Documentation=https://containerd.io
After=network.target local-fs.target
[Service]
ExecStartPre=-/sbin/modprobe overlay
ExecStart=/usr/bin/containerd
Type=notify
Delegate=yes
KillMode=process
Restart=always
RestartSec=5
LimitNPROC=infinity
LimitCORE=infinity
LimitNOFILE=1048576
TasksMax=infinity
OOMScoreAdjust=-999
[Install]
WantedBy=multi-user.target
EOF
systemctl enable --now containerd.service

#准备docker的service文件

cat > /etc/systemd/system/docker.service <<EOF
[Unit]
Description=Docker Application Container Engine
Documentation=https://docs.docker.com
After=network-online.target firewalld.service containerd.service
Wants=network-online.target
Requires=docker.socket containerd.service
[Service]
Type=notify
ExecStart=/usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock
ExecReload=/bin/kill -s HUP $MAINPID
TimeoutSec=0
RestartSec=2
Restart=always
StartLimitBurst=3
StartLimitInterval=60s
LimitNOFILE=infinity
LimitNPROC=infinity
LimitCORE=infinity
TasksMax=infinity
Delegate=yes
KillMode=process
OOMScoreAdjust=-500
[Install]
WantedBy=multi-user.target
EOF


#准备docker的socket文件

cat > /etc/systemd/system/docker.socket <<EOF
[Unit]
Description=Docker Socket for the API
[Socket]
ListenStream=/var/run/docker.sock
SocketMode=0660
SocketUser=root
SocketGroup=docker
[Install]
WantedBy=sockets.target
EOF
groupadd docker

systemctl enable --now docker.socket  && systemctl enable --now docker.service


#验证
mkdir /etc/docker
cat >/etc/docker/daemon.json <<EOF
{
  "exec-opts": ["native.cgroupdriver=systemd"],
  "registry-mirrors": [
    "https://docker.mirrors.ustc.edu.cn",
    "http://hub-mirror.c.163.com"
  ],
  "max-concurrent-downloads": 10,
  "log-driver": "json-file",
  "log-level": "warn",
  "log-opts": {
    "max-size": "10m",
    "max-file": "3"
    },
  "data-root": "/var/lib/docker"
}
EOF
systemctl restart docker

安装cri-docker

操作节点[master1，master2，master3,node01]

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
wget https://github.com/Mirantis/cri-dockerd/releases/download/v0.3.7/cri-dockerd-0.3.7.amd64.tgz

tar -zxvf cri-dockerd-0.3.7.amd64.tgz
cp cri-dockerd/cri-dockerd  /usr/bin/
chmod +x /usr/bin/cri-dockerd


#写入启动配置文件
cat >  /usr/lib/systemd/system/cri-docker.service <<EOF
[Unit]
Description=CRI Interface for Docker Application Container Engine
Documentation=https://docs.mirantis.com
After=network-online.target firewalld.service docker.service
Wants=network-online.target
Requires=cri-docker.socket

[Service]
Type=notify
ExecStart=/usr/bin/cri-dockerd --network-plugin=cni --pod-infra-container-image=registry.aliyuncs.com/google_containers/pause:3.9
ExecReload=/bin/kill -s HUP $MAINPID
TimeoutSec=0
RestartSec=2
Restart=always

StartLimitBurst=3

StartLimitInterval=60s

LimitNOFILE=infinity
LimitNPROC=infinity
LimitCORE=infinity

TasksMax=infinity
Delegate=yes
KillMode=process

[Install]
WantedBy=multi-user.target
EOF


#写入socket配置文件
cat > /usr/lib/systemd/system/cri-docker.socket <<EOF
[Unit]
Description=CRI Docker Socket for the API
PartOf=cri-docker.service

[Socket]
ListenStream=%t/cri-dockerd.sock
SocketMode=0660
SocketUser=root
SocketGroup=docker

[Install]
WantedBy=sockets.target
EOF

systemctl daemon-reload && systemctl enable cri-docker --now

K8S集群安装

安装k8s所需的工具

1
2
3
4
5
6
7
8
9
10
操作节点[master1，master2，master3,node01]

yum -y install  kubeadm kubelet kubectl

#为了实现docker使用的cgroupdriver与kubelet使用的cgroup的一致性，配置如下：
sed -i 's/^KUBELET_EXTRA_ARGS=/KUBELET_EXTRA_ARGS="--cgroup-driver=systemd"/g' /etc/sysconfig/kubelet

#设置kubelet为开机自启动即可，由于没有生成配置文件，集群初始化后自动启动
systemctl enable kubelet
systemctl enable kubelet.service

集群初始化

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
操作节点[master1]

cat > kubeadm-config.yaml << EOF
apiVersion: kubeadm.k8s.io/v1beta3
bootstrapTokens:
- groups:
  - system:bootstrappers:kubeadm:default-node-token
  token: abcdef.0123456789abcdef
  ttl: 24h0m0s
  usages:
  - signing
  - authentication
kind: InitConfiguration
localAPIEndpoint:
  advertiseAddress: 192.168.48.101
  bindPort: 6443
nodeRegistration:
  criSocket: unix:///var/run/cri-dockerd.sock
  imagePullPolicy: IfNotPresent
  taints: null
---
apiServer:
  timeoutForControlPlane: 4m0s
apiVersion: kubeadm.k8s.io/v1beta3
certificatesDir: /etc/kubernetes/pki
clusterName: kubernetes
controllerManager: {}
dns: {}
etcd:
  local:
    dataDir: /var/lib/etcd
imageRepository: registry.aliyuncs.com/google_containers
kind: ClusterConfiguration
kubernetesVersion: 1.28.2
networking:
  dnsDomain: cluster.local
  podSubnet: 10.244.0.0/16
  serviceSubnet: 10.96.0.0/12
scheduler: {}
controlPlaneEndpoint: "192.168.48.200:16443"
---
apiVersion: kubeproxy.config.k8s.io/v1alpha1
bindAddress: 0.0.0.0
bindAddressHardFail: false
clientConnection:
  acceptContentTypes: ""
  burst: 0
  contentType: ""
  kubeconfig: /var/lib/kube-proxy/kubeconfig.conf
  qps: 0
clusterCIDR: ""
configSyncPeriod: 0s
conntrack:
  maxPerCore: null
  min: null
  tcpCloseWaitTimeout: null
  tcpEstablishedTimeout: null
detectLocal:
  bridgeInterface: ""
  interfaceNamePrefix: ""
detectLocalMode: ""
enableProfiling: false
healthzBindAddress: ""
hostnameOverride: ""
iptables:
  localhostNodePorts: null
  masqueradeAll: false
  masqueradeBit: null
  minSyncPeriod: 0s
  syncPeriod: 0s
ipvs:
  excludeCIDRs: null
  minSyncPeriod: 0s
  scheduler: ""
  strictARP: false
  syncPeriod: 0s
  tcpFinTimeout: 0s
  tcpTimeout: 0s
  udpTimeout: 0s
kind: KubeProxyConfiguration
logging:
  flushFrequency: 0
  options:
    json:
      infoBufferSize: "0"
  verbosity: 0
metricsBindAddress: ""
mode: ""
nodePortAddresses: null
oomScoreAdj: null
portRange: ""
showHiddenMetricsForVersion: ""
winkernel:
  enableDSR: false
  forwardHealthCheckVip: false
  networkName: ""
  rootHnsEndpointName: ""
  sourceVip: ""
---
apiVersion: kubelet.config.k8s.io/v1beta1
authentication:
  anonymous:
    enabled: false
  webhook:
    cacheTTL: 0s
    enabled: true
  x509:
    clientCAFile: /etc/kubernetes/pki/ca.crt
authorization:
  mode: Webhook
  webhook:
    cacheAuthorizedTTL: 0s
    cacheUnauthorizedTTL: 0s
cgroupDriver: systemd
clusterDNS:
- 10.96.0.10
clusterDomain: cluster.local
containerRuntimeEndpoint: ""
cpuManagerReconcilePeriod: 0s
evictionPressureTransitionPeriod: 0s
fileCheckFrequency: 0s
healthzBindAddress: 127.0.0.1
healthzPort: 10248
httpCheckFrequency: 0s
imageMinimumGCAge: 0s
kind: KubeletConfiguration
logging:
  flushFrequency: 0
  options:
    json:
      infoBufferSize: "0"
  verbosity: 0
memorySwap: {}
nodeStatusReportFrequency: 0s
nodeStatusUpdateFrequency: 0s
rotateCertificates: true
runtimeRequestTimeout: 0s
shutdownGracePeriod: 0s
shutdownGracePeriodCriticalPods: 0s
staticPodPath: /etc/kubernetes/manifests
streamingConnectionIdleTimeout: 0s
syncFrequency: 0s
volumeStatsAggPeriod: 0s

EOF

kubeadm config migrate --old-config kubeadm-config.yaml --new-config new.yaml

准备k8s所需的镜像

1
2
3
操作节点[master1,master2,master3]

kubeadm config images pull --config /root/new.yaml

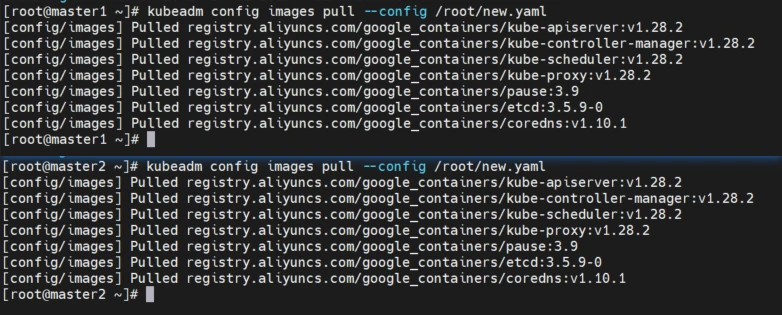

image-20231110100341121

master1节点初始化

操作节点[master1]

1
kubeadm init --config /root/new.yaml  --upload-certs

会生成信息

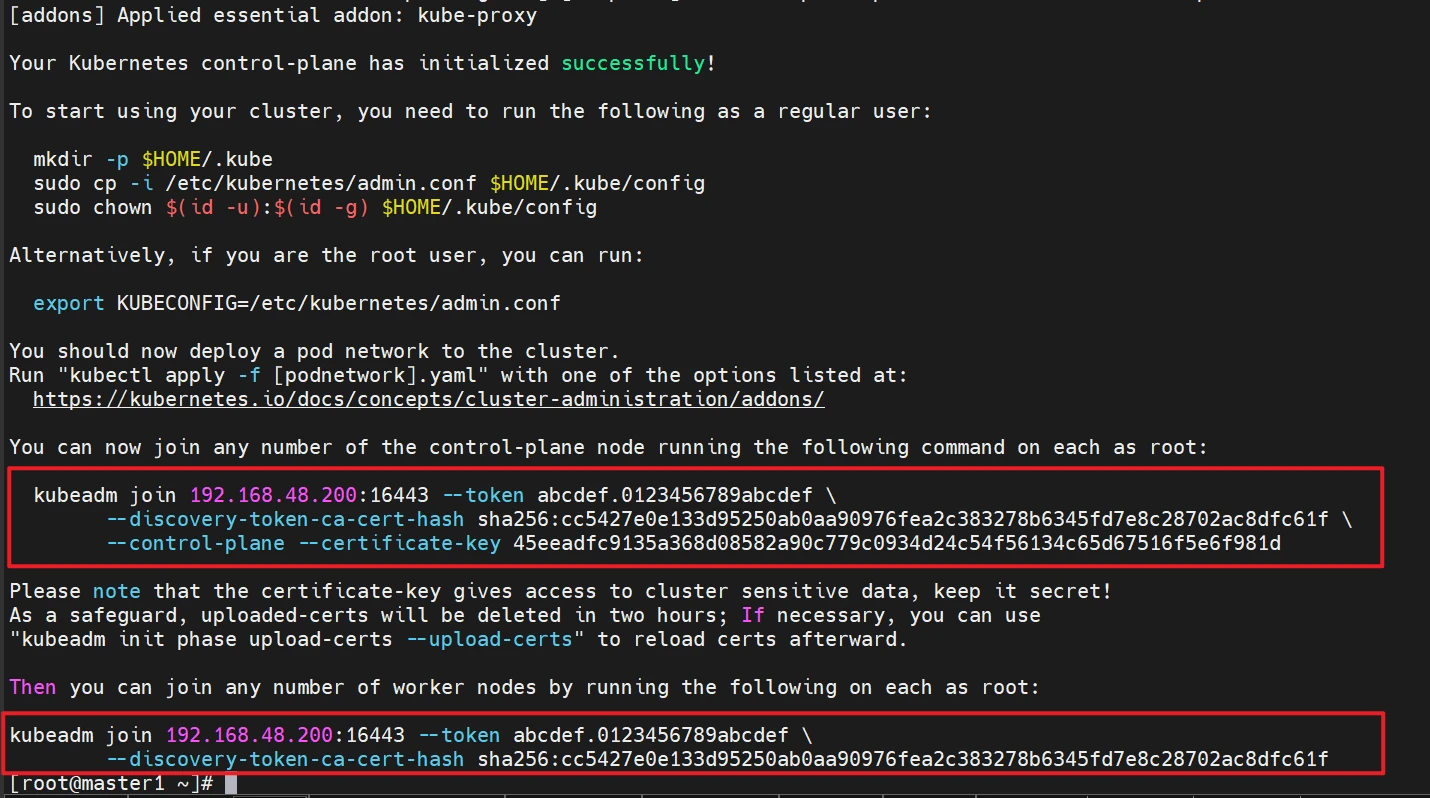

image-20231110175843902

记录信息后面会用到

初始化成功以后，会产生Token值，用于其他节点加入时使用，因此要记录下初始化成功生成的token值（令牌值），有效期24小时，后续需要操作可以重新生成Token

操作节点[master1]

1
2
3
4
5
6
7
8
kubeadm join 192.168.48.200:16443 --token abcdef.0123456789abcdef \
        --discovery-token-ca-cert-hash sha256:cc5427e0e133d95250ab0aa90976fea2c383278b6345fd7e8c28702ac8dfc61f \
        --control-plane --certificate-key 45eeadfc9135a368d08582a90c779c0934d24c54f56134c65d67516f5e6f981d


kubeadm join 192.168.48.200:16443 --token abcdef.0123456789abcdef \
        --discovery-token-ca-cert-hash sha256:cc5427e0e133d95250ab0aa90976fea2c383278b6345fd7e8c28702ac8dfc61f

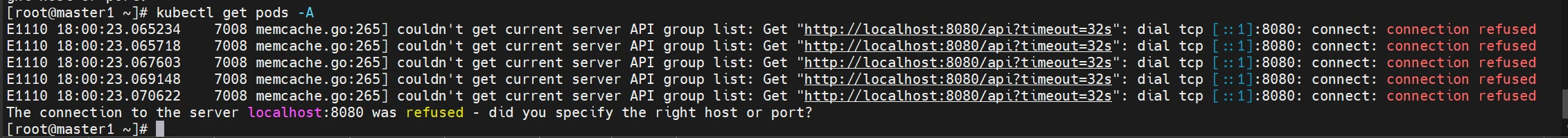

操作kubect报错：

image-20231110180035297

此时通过kubectl操作，会出现失败，因为还没有将集群的”钥匙”交给root用户。/etc/kubernetes/admin.conf 文件是 Kubernetes（K8s）集群中的管理员配置文件，它包含了用于管理集群的身份验证和访问信息。所以下面进行配置环境变量，用于访问Kubernetes集群：

添加环境变量

操作节点[master1]

1
2
3
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config

添加其他master节点至集群中

操作节点[master2,master3]

1
2
3
4
5
操作节点[master2,master3]
kubeadm join 192.168.48.200:16443 --token abcdef.0123456789abcdef \
        --discovery-token-ca-cert-hash sha256:cc5427e0e133d95250ab0aa90976fea2c383278b6345fd7e8c28702ac8dfc61f \
        --control-plane --certificate-key 45eeadfc9135a368d08582a90c779c0934d24c54f56134c65d67516f5e6f981d \
        --cri-socket unix:///var/run/cri-dockerd.sock

注意：这里末尾添加了--cri-socket unix:///var/run/cri-dockerd.sock

接着给master2添加环境变量

1
2
3
4
操作节点[master2,master3]
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config

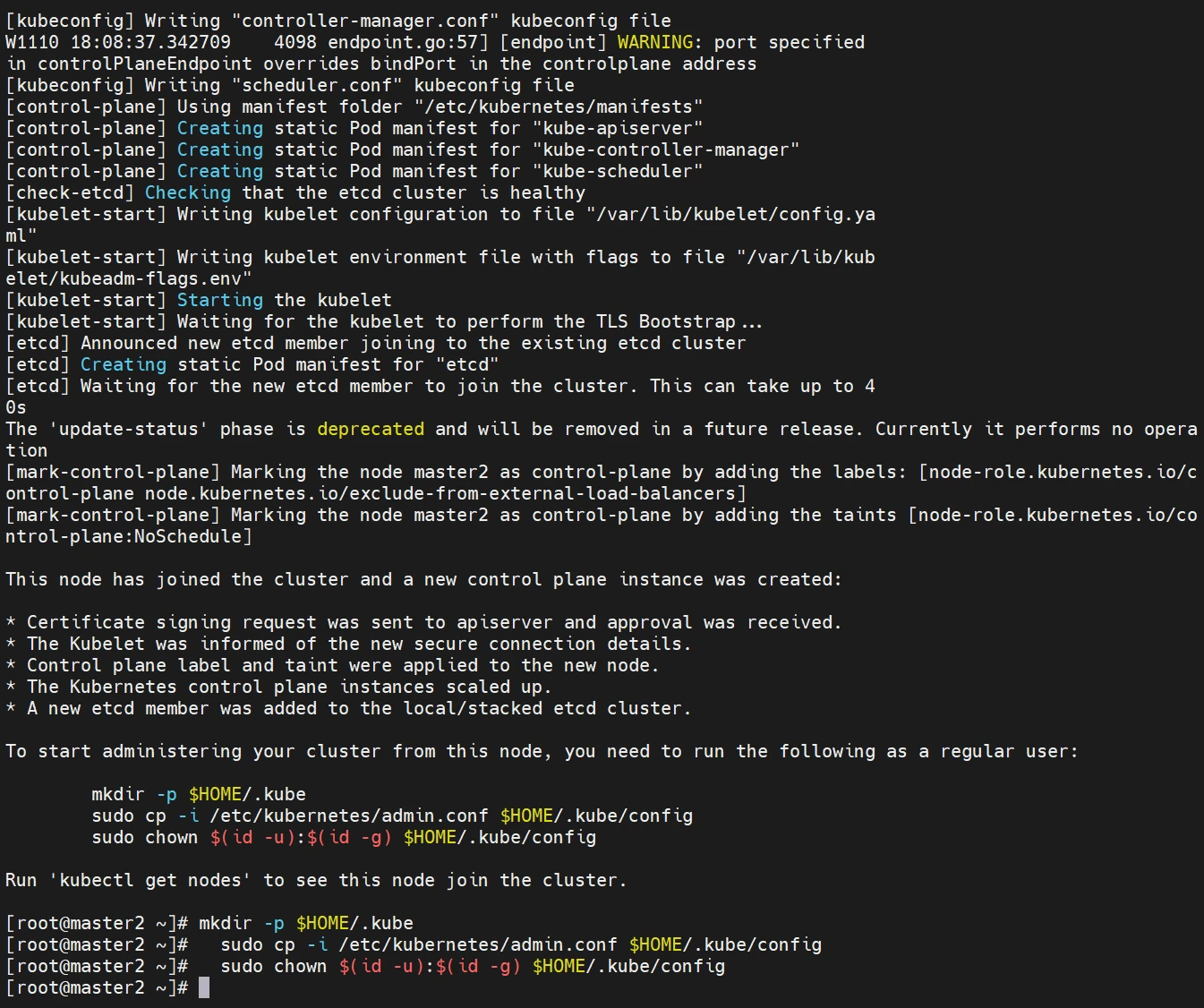

image-20231110180919008

这里没有展示master3的图片，但是步骤一样的

模拟Token过期重新生成并加入Node节点

假设加入集群的token过期了。node01无法加入了，这里就模拟一下这种情况

  1. Token过期后生成新的token：
1
kubeadm token create --print-join-command
1
2
3
[root@master1 ~]# kubeadm token create --print-join-command
kubeadm join 192.168.48.200:16443 --token tn5q1b.7w1jj77ewup7k2in --discovery-token-ca-cert-hash sha256:cc5427e0e133d95250ab0aa90976fea2c383278b6345fd7e8c28702ac8dfc61f

其中，192.168.48.200:16443 是你的 Kubernetes API 服务器的地址和端口，tn5q1b.7w1jj77ewup7k2in 是新的令牌，sha256:cc5427e0e133d95250ab0aa90976fea2c383278b6345fd7e8c28702ac8dfc61f 是令牌的 CA 证书哈希值。

  1. Master需要生成–certificate-key：
1
kubeadm init phase upload-certs --upload-certs
1
2
3
4
5
6
[root@master1 ~]# kubeadm init phase upload-certs --upload-certs
W1110 18:12:03.426245   10185 version.go:104] could not fetch a Kubernetes version from the internet: unable to get URL "https://dl.k8s.io/release/stable-1.txt": Get "https://dl.k8s.io/release/stable-1.txt": context deadline exceeded (Client.Timeout exceeded while awaiting headers)
W1110 18:12:03.426320   10185 version.go:105] falling back to the local client version: v1.28.2
[upload-certs] Storing the certificates in Secret "kubeadm-certs" in the "kube-system" Namespace
[upload-certs] Using certificate key:
5d3706028d5e569324a4c456c81ae0f5551ece88b3132f03917668c6b0605128

其中，5d3706028d5e569324a4c456c81ae0f5551ece88b3132f03917668c6b0605128 是证书密钥。

  1. 生成新的Token用于集群添加新Node节点

操作节点[node01]

1
2
kubeadm join 192.168.48.200:16443 --token tn5q1b.7w1jj77ewup7k2in --discovery-token-ca-cert-hash sha256:cc5427e0e133d95250ab0aa90976fea2c383278b6345fd7e8c28702ac8dfc61f  \
        --cri-socket unix:///var/run/cri-dockerd.sock

注意：这里末尾添加了--cri-socket unix:///var/run/cri-dockerd.sock

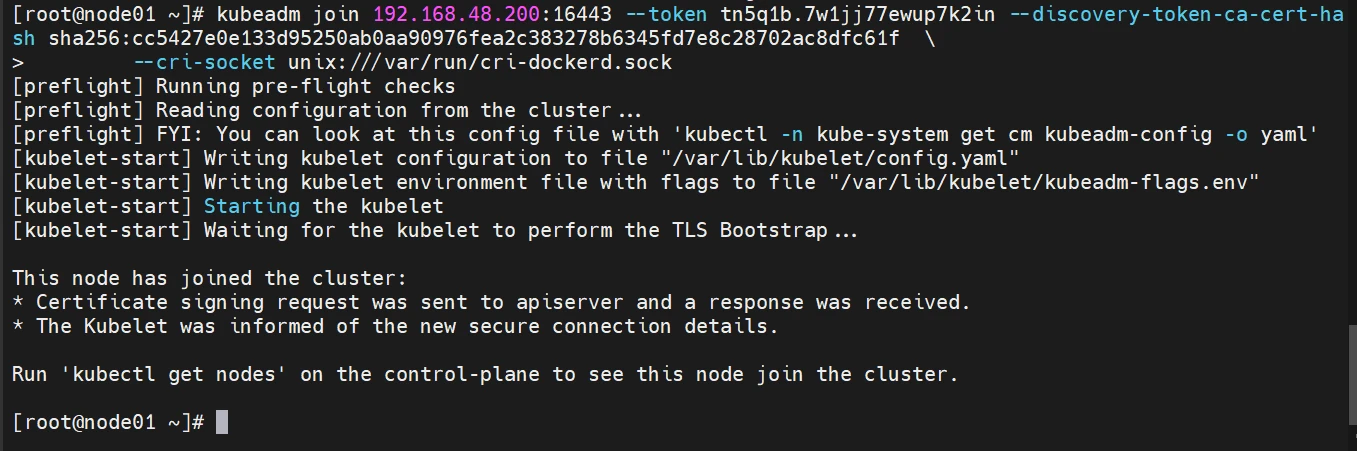

image-20231110181623386

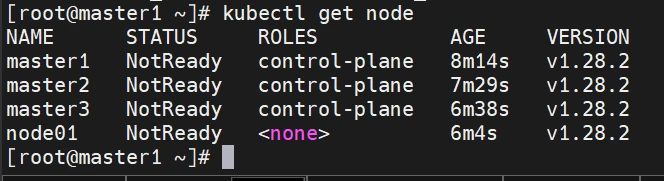

这时在master查看node状态（显示为notready不影响）

image-20231111145807000

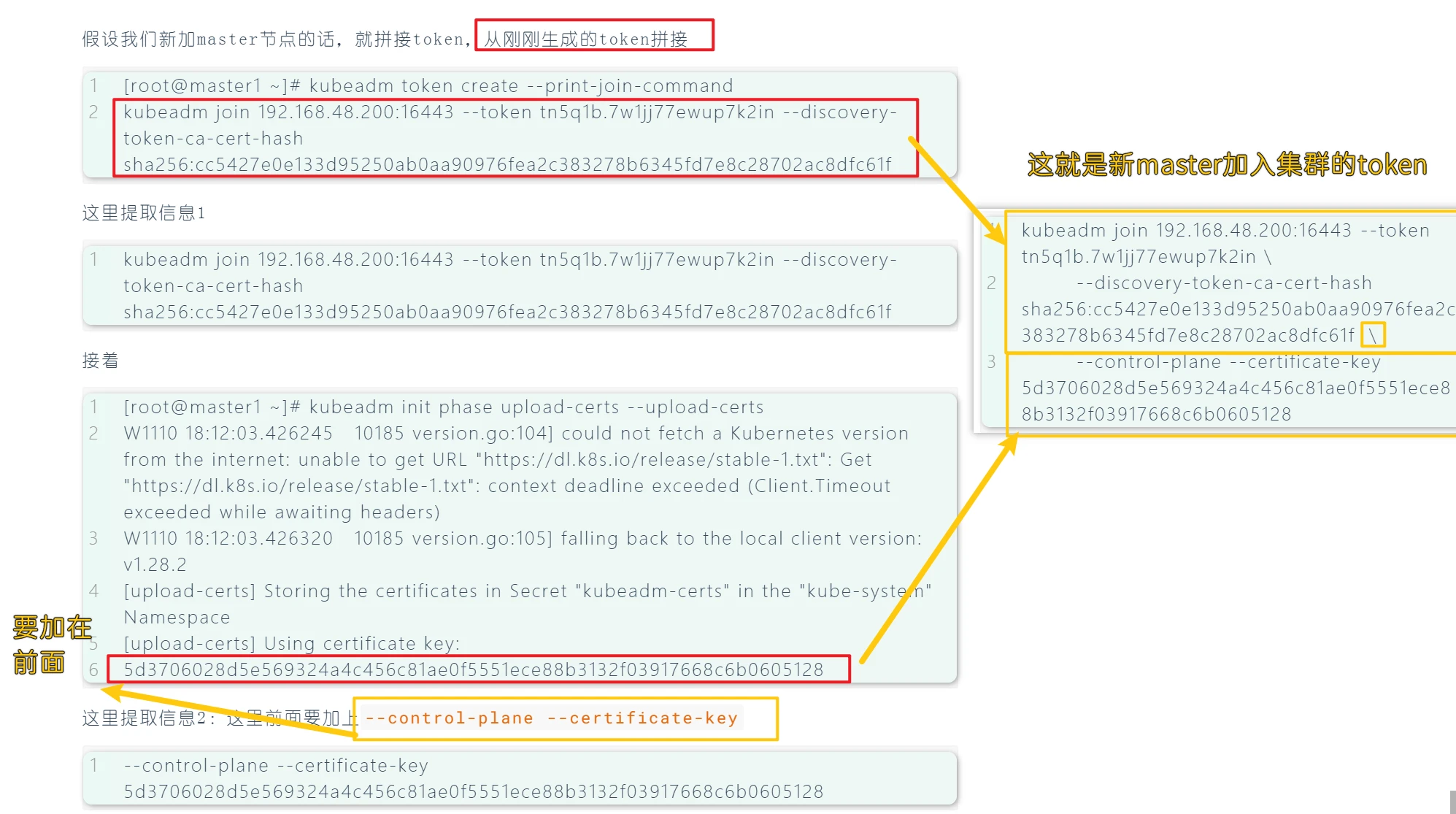

模拟新加master节点的加入K8S集群中

假设我们新加master节点的话，就拼接token，从刚刚生成的token拼接

1
2
[root@master1 ~]# kubeadm token create --print-join-command
kubeadm join 192.168.48.200:16443 --token tn5q1b.7w1jj77ewup7k2in --discovery-token-ca-cert-hash sha256:cc5427e0e133d95250ab0aa90976fea2c383278b6345fd7e8c28702ac8dfc61f

这里提取信息1

1
kubeadm join 192.168.48.200:16443 --token tn5q1b.7w1jj77ewup7k2in --discovery-token-ca-cert-hash sha256:cc5427e0e133d95250ab0aa90976fea2c383278b6345fd7e8c28702ac8dfc61f

接着

1
2
3
4
5
6
[root@master1 ~]# kubeadm init phase upload-certs --upload-certs
W1110 18:12:03.426245   10185 version.go:104] could not fetch a Kubernetes version from the internet: unable to get URL "https://dl.k8s.io/release/stable-1.txt": Get "https://dl.k8s.io/release/stable-1.txt": context deadline exceeded (Client.Timeout exceeded while awaiting headers)
W1110 18:12:03.426320   10185 version.go:105] falling back to the local client version: v1.28.2
[upload-certs] Storing the certificates in Secret "kubeadm-certs" in the "kube-system" Namespace
[upload-certs] Using certificate key:
5d3706028d5e569324a4c456c81ae0f5551ece88b3132f03917668c6b0605128

这里提取信息2：这里前面要加上--control-plane --certificate-key

1
--control-plane --certificate-key 5d3706028d5e569324a4c456c81ae0f5551ece88b3132f03917668c6b0605128

合成

1
2
3
4
5
6
7
8
9
10
11
12
kubeadm join 192.168.48.200:16443 --token tn5q1b.7w1jj77ewup7k2in \
        --discovery-token-ca-cert-hash sha256:cc5427e0e133d95250ab0aa90976fea2c383278b6345fd7e8c28702ac8dfc61f  \
        --control-plane --certificate-key 5d3706028d5e569324a4c456c81ae0f5551ece88b3132f03917668c6b0605128 \
        --cri-socket unix:///var/run/cri-dockerd.sock


kubeadm join 192.168.48.200:16443 --token lnkno8.u4v1l8n9pahzf0kj \
        --discovery-token-ca-cert-hash sha256:cc5427e0e133d95250ab0aa90976fea2c383278b6345fd7e8c28702ac8dfc61f \
        --control-plane --certificate-key 41e441fe56cb4bdfcc2fc0291958e6b1da54d01f4649b6651471c07583f85cdf \
        --cri-socket unix:///var/run/cri-dockerd.sock


注意：这里末尾添加了--cri-socket unix:///var/run/cri-dockerd.sock

图示

image-20231110182741430

安装calico网络插件

操作节点[master1]

添加解析记录，否则无法访问

1
echo '185.199.108.133 raw.githubusercontent.com' >> /etc/hosts

应用operator资源清单文件

网络组件有很多种，只需要部署其中一个即可，推荐Calico。
Calico是一个纯三层的数据中心网络方案，Calico支持广泛的平台，包括Kubernetes、OpenStack等。
Calico 在每一个计算节点利用 Linux Kernel 实现了一个高效的虚拟路由器（ vRouter） 来负责数据转发，而每个 vRouter 通过 BGP 协议负责把自己上运行的 workload 的路由信息向整个 Calico 网络内传播。
此外，Calico 项目还实现了 Kubernetes 网络策略，提供ACL功能。

1
curl https://raw.githubusercontent.com/projectcalico/calico/v3.25.1/manifests/calico.yaml -O
1
2
3
4
5
6
[root@master1 ~]# vim calico.yaml
#添加两行
- name: IP_AUTODETECTION_METHOD
  value: interface=ens33

#ens33是你的网卡

image-20231110183944854

1
2
sed -i 's| docker.io/calico/| registry.cn-hangzhou.aliyuncs.com/qianyios/|' calico.yaml

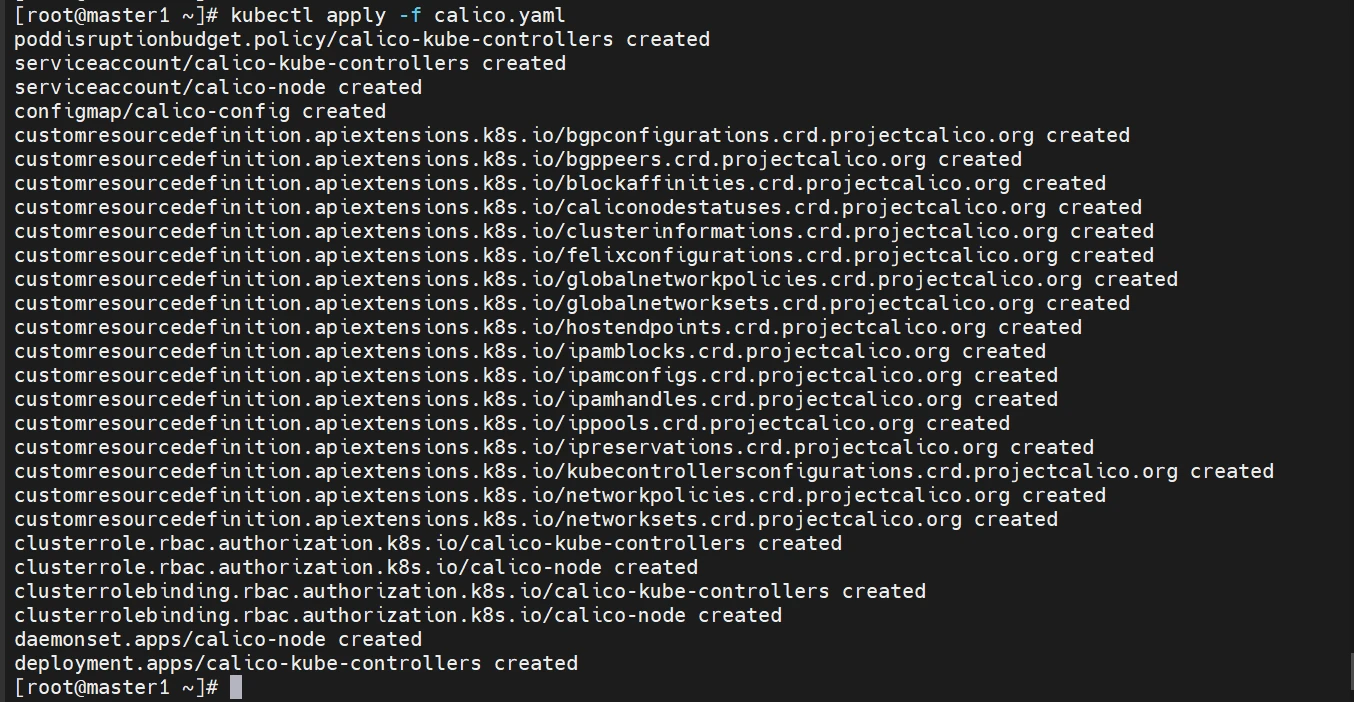

kubectl apply -f calico.yaml

image-20231110184031455

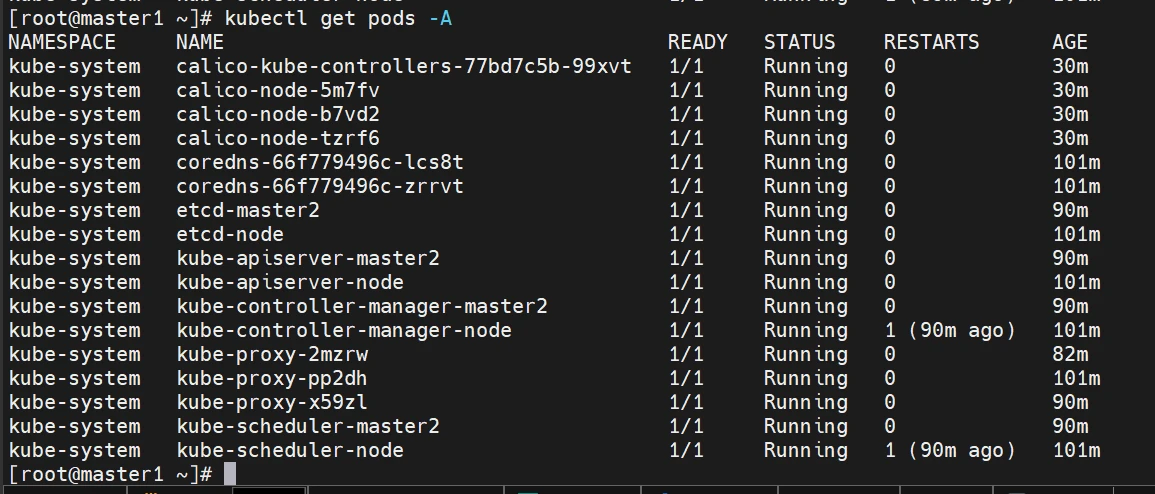

监视kube-system命名空间中pod运行情况

等待估计20分钟左右吧(确保全部running)

1
kubectl get pods -n kube-system

image-20231110193921266

拿掉master节点的污点

节点 master1 和 master2 都有一个名为 node-role.kubernetes.io/control-plane:NoSchedule 的污点。这个污点的作用是阻止普通的 Pod 被调度到这些节点上，只允许特定的控制平面组件（如 kube-apiserver、kube-controller-manager 和 kube-scheduler）在这些节点上运行。

这种设置有助于确保控制平面节点专门用于运行 Kubernetes 的核心组件，而不会被普通的工作负载占用。通过将污点添加到节点上，可以确保只有被授权的控制平面组件才能在这些节点上运行。

1
2
3
kubectl describe node master1 | grep -i taint
kubectl describe node master2 | grep -i taint
kubectl describe node master3 | grep -i taint

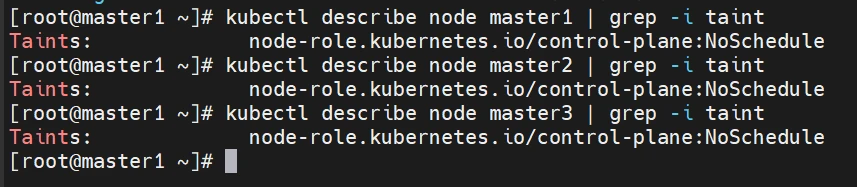

image-20231111152324023

去除污点

1
2
3

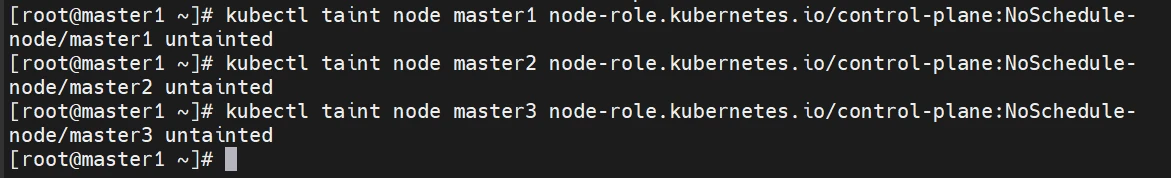

kubectl taint node master1 node-role.kubernetes.io/control-plane:NoSchedule-
kubectl taint node master2 node-role.kubernetes.io/control-plane:NoSchedule-
kubectl taint node master3 node-role.kubernetes.io/control-plane:NoSchedule-

image-20231111152342956

安装dashboard

操作节点[master1]

下载文件

https://github.com/kubernetes/dashboard/releases/tag/v2.7.0

目前最新版本v2.7.0

1
2
3

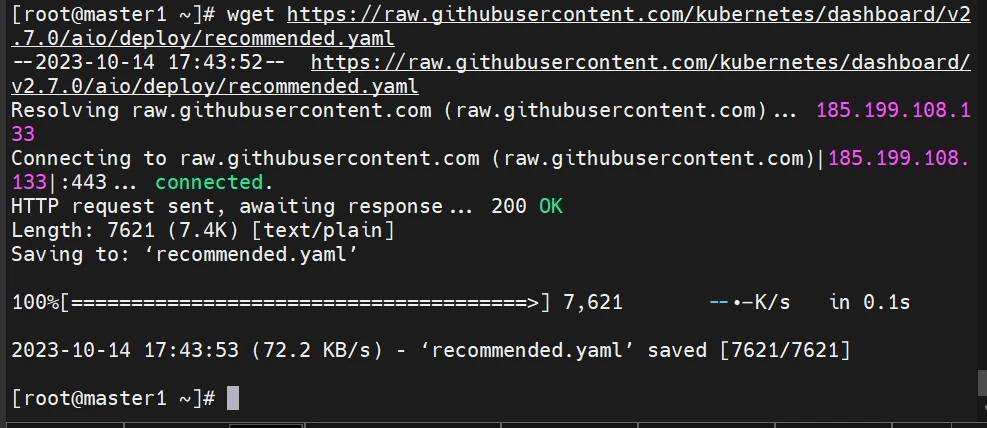

wget https://raw.githubusercontent.com/kubernetes/dashboard/v2.7.0/aio/deploy/recommended.yaml
sed -i 's/kubernetesui\/dashboard:v2.7.0/registry.cn-hangzhou.aliyuncs.com\/qianyios\/dashboard:v2.7.0/g' recommended.yaml
sed -i 's/kubernetesui\/metrics-scraper:v1.0.8/registry.cn-hangzhou.aliyuncs.com\/qianyios\/metrics-scraper:v1.0.8/g' recommended.yaml

image-20231014174400992

修改配置文件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
vim recommended.yaml
---
kind: Service
apiVersion: v1
metadata:
  labels:
    app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
spec:
  ports:
    - port: 443
      targetPort: 8443
      nodePort: 30001
  type: NodePort
  selector:
    app: kubernetes-dashboard

---

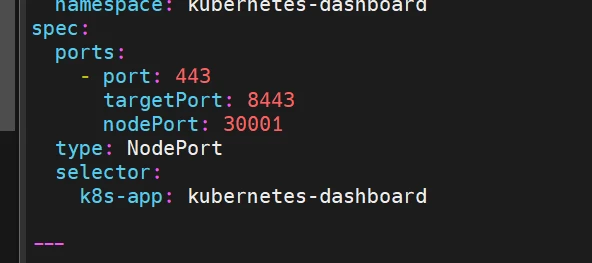

image-20231014174511047

运行dashboard

1

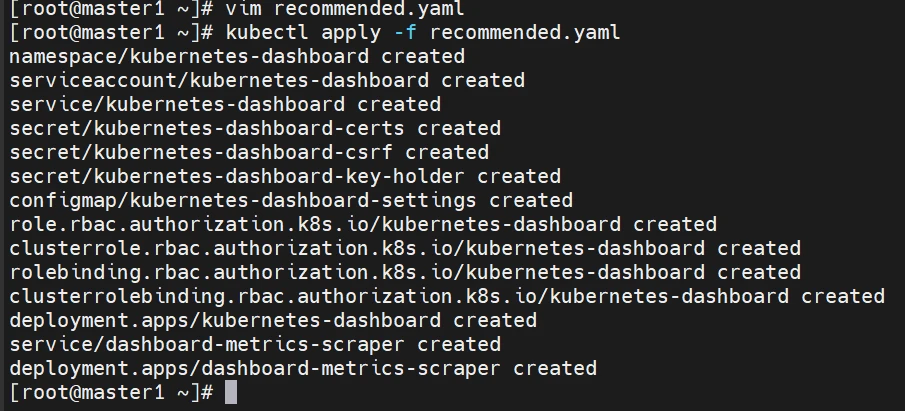

kubectl apply -f recommended.yaml

image-20231014174622344

检查运行状态

1
2

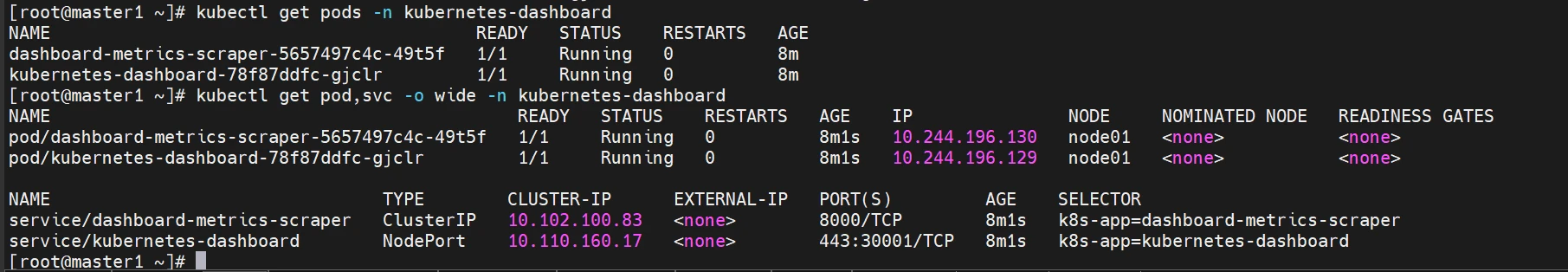

kubectl get pods -n kubernetes-dashboard
kubectl get pod,svc -o wide -n kubernetes-dashboard

image-20231111025752605

创建cluster-admin用户

1
2
3
4
5
6
7
创建service account并绑定默认cluster-admin管理员群角色
#创建用户
kubectl create serviceaccount dashboard-admin -n kubernetes-dashboard
#用户授权
kubectl create clusterrolebinding dashboard-admin --clusterrole=cluster-admin --serviceaccount=kubernetes-dashboard:dashboard-admin
#获取用户Token
kubectl create token dashboard-admin -n kubernetes-dashboard

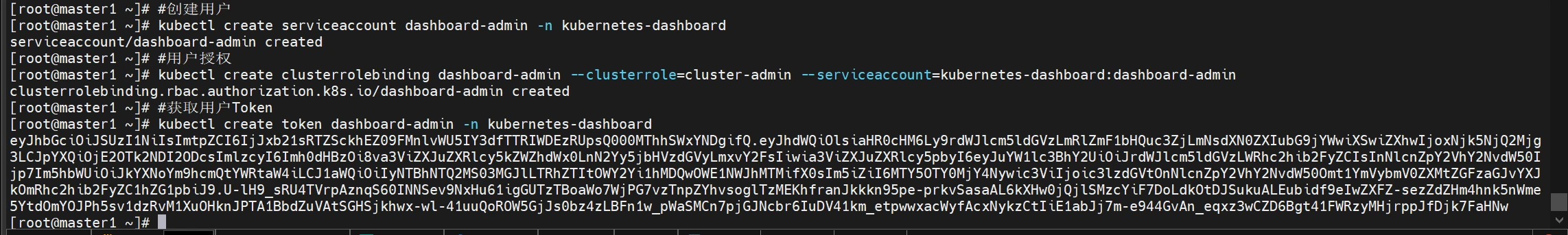

image-20231111025817854

记录token

1
2
eyJhbGciOiJSUzI1NiIsImtpZCI6IjJxb21sRTZSckhEZ09FMnlvWU5IY3dfTTRIWDEzRUpsQ000MThhSWxYNDgifQ.eyJhdWQiOlsiaHR0cHM6Ly9rdWJlcm5ldGVzLmRlZmF1bHQuc3ZjLmNsdXN0ZXIubG9jYWwiXSwiZXhwIjoxNjk5NjQ2Mjg3LCJpYXQiOjE2OTk2NDI2ODcsImlzcyI6Imh0dHBzOi8va3ViZXJuZXRlcy5kZWZhdWx0LnN2Yy5jbHVzdGVyLmxvY2FsIiwia3ViZXJuZXRlcy5pbyI6eyJuYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsInNlcnZpY2VhY2NvdW50Ijp7Im5hbWUiOiJkYXNoYm9hcmQtYWRtaW4iLCJ1aWQiOiIyNTBhNTQ2MS03MGJlLTRhZTItOWY2Yi1hMDQwOWE1NWJhMTMifX0sIm5iZiI6MTY5OTY0MjY4Nywic3ViIjoic3lzdGVtOnNlcnZpY2VhY2NvdW50Omt1YmVybmV0ZXMtZGFzaGJvYXJkOmRhc2hib2FyZC1hZG1pbiJ9.U-lH9_sRU4TVrpAznqS60INNSev9NxHu61igGUTzTBoaWo7WjPG7vzTnpZYhvsoglTzMEKhfranJkkkn95pe-prkvSasaAL6kXHw0jQjlSMzcYiF7DoLdkOtDJSukuALEubidf9eIwZXFZ-sezZdZHm4hnk5nWme5YtdOmYOJPh5sv1dzRvM1XuOHknJPTA1BbdZuVAtSGHSjkhwx-wl-41uuQoROW5GjJs0bz4zLBFn1w_pWaSMCn7pjGJNcbr6IuDV41km_etpwwxacWyfAcxNykzCtIiE1abJj7m-e944GvAn_eqxz3wCZD6Bgt41FWRzyMHjrppJfDjk7FaHNw

登录浏览器访问

1
2
3
4
5
6
7
8

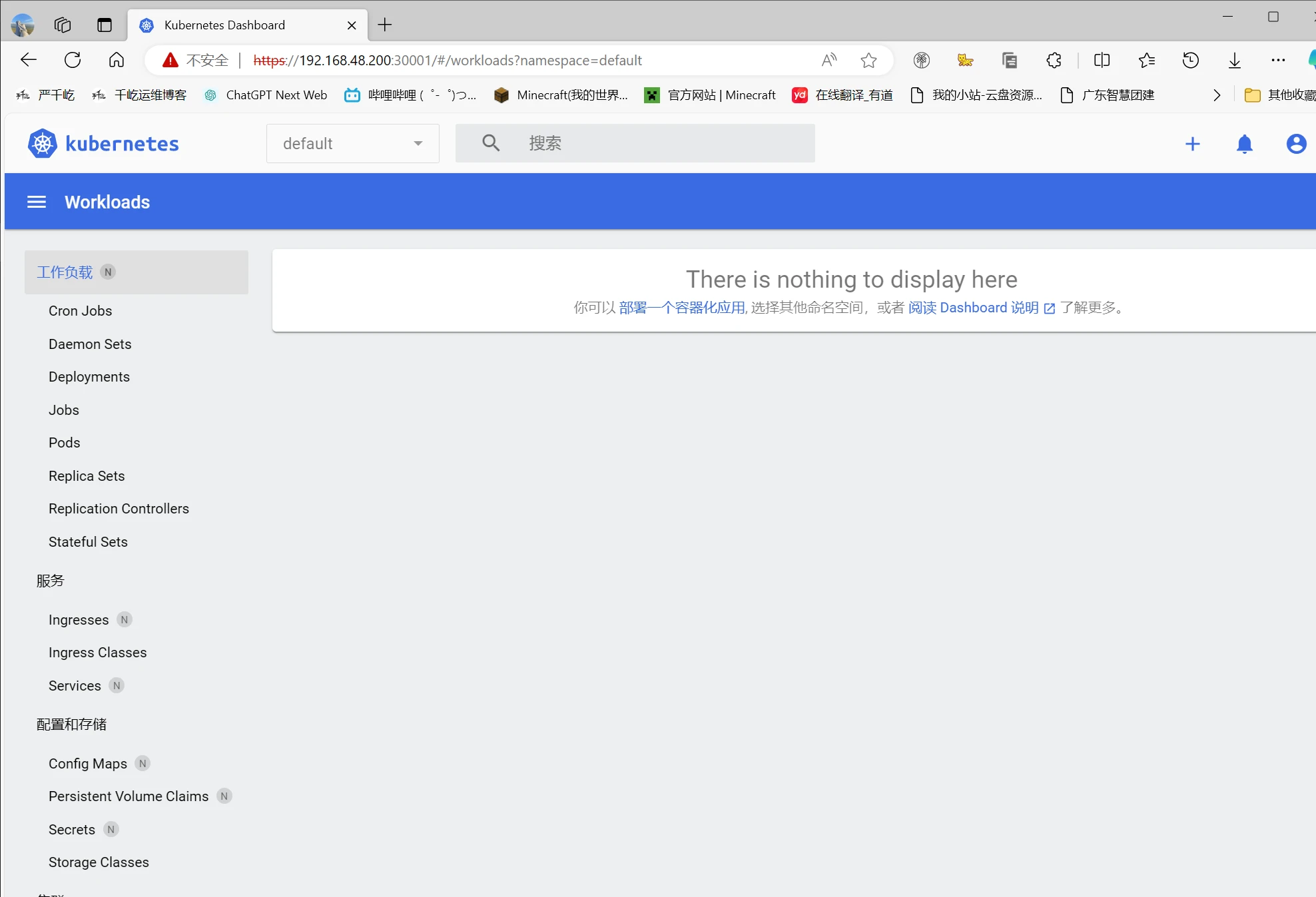

https://192.168.48.200:30001

输入token：
----
eyJhbGciOiJSUzI1NiIsImtpZCI6IjJxb21sRTZSckhEZ09FMnlvWU5IY3dfTTRIWDEzRUpsQ000MThhSWxYNDgifQ.eyJhdWQiOlsiaHR0cHM6Ly9rdWJlcm5ldGVzLmRlZmF1bHQuc3ZjLmNsdXN0ZXIubG9jYWwiXSwiZXhwIjoxNjk5NjQ2Mjg3LCJpYXQiOjE2OTk2NDI2ODcsImlzcyI6Imh0dHBzOi8va3ViZXJuZXRlcy5kZWZhdWx0LnN2Yy5jbHVzdGVyLmxvY2FsIiwia3ViZXJuZXRlcy5pbyI6eyJuYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsInNlcnZpY2VhY2NvdW50Ijp7Im5hbWUiOiJkYXNoYm9hcmQtYWRtaW4iLCJ1aWQiOiIyNTBhNTQ2MS03MGJlLTRhZTItOWY2Yi1hMDQwOWE1NWJhMTMifX0sIm5iZiI6MTY5OTY0MjY4Nywic3ViIjoic3lzdGVtOnNlcnZpY2VhY2NvdW50Omt1YmVybmV0ZXMtZGFzaGJvYXJkOmRhc2hib2FyZC1hZG1pbiJ9.U-lH9_sRU4TVrpAznqS60INNSev9NxHu61igGUTzTBoaWo7WjPG7vzTnpZYhvsoglTzMEKhfranJkkkn95pe-prkvSasaAL6kXHw0jQjlSMzcYiF7DoLdkOtDJSukuALEubidf9eIwZXFZ-sezZdZHm4hnk5nWme5YtdOmYOJPh5sv1dzRvM1XuOHknJPTA1BbdZuVAtSGHSjkhwx-wl-41uuQoROW5GjJs0bz4zLBFn1w_pWaSMCn7pjGJNcbr6IuDV41km_etpwwxacWyfAcxNykzCtIiE1abJj7m-e944GvAn_eqxz3wCZD6Bgt41FWRzyMHjrppJfDjk7FaHNw

----

image-20231111025910110

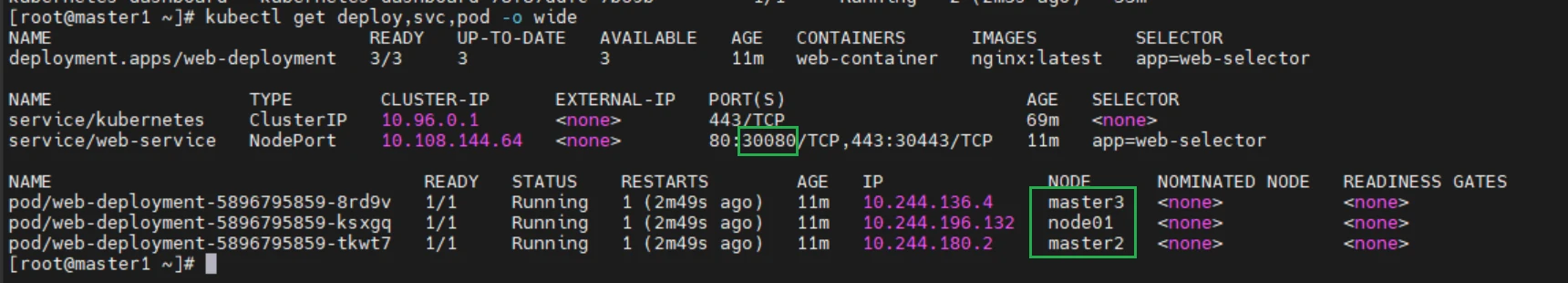

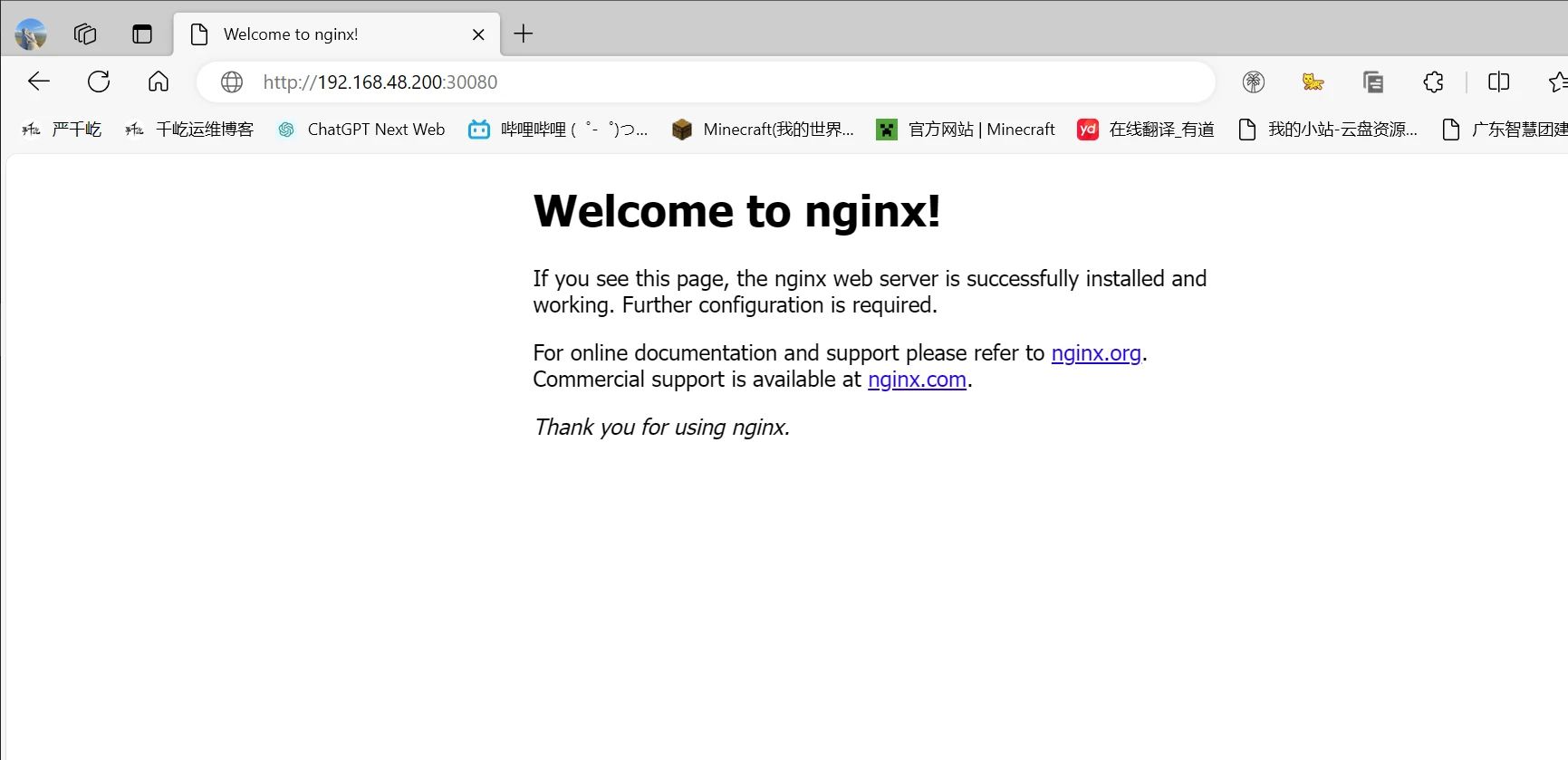

部署一个nginx测试

操作节点[master1]

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
vim web.yaml

kind: Deployment
#apiVersion: extensions/v1beta1
apiVersion: apps/v1
metadata:
  labels:
    app: web-deployment-label
  name: web-deployment
  namespace: default
spec:
  replicas: 3
  selector:
    matchLabels:
      app: web-selector
  template:
    metadata:
      labels:
        app: web-selector
    spec:
      containers:
      - name: web-container
        image: nginx:latest
        imagePullPolicy: Always
        ports:
        - containerPort: 80
          protocol: TCP
          name: http
        - containerPort: 443
          protocol: TCP
          name: https

---
kind: Service
apiVersion: v1
metadata:
  labels:
    app: web-service-label
  name: web-service
  namespace: default
spec:
  type: NodePort
  ports:
  - name: http
    port: 80
    protocol: TCP
    targetPort: 80
    nodePort: 30080
  - name: https
    port: 443
    protocol: TCP
    targetPort: 443
    nodePort: 30443
  selector:
    app: web-selector

kubectl apply -f web.yaml

image-20231014180923818

1
2
### 查看nginx的pod 的详细信息
kubectl get deploy,svc,pod -o wide

image-20231016203536987

访问nginx网站

1
http://192.168.48.200:30080

image-20231111030413487

特别声明
千屹博客旗下的所有文章，是通过本人课堂学习和课外自学所精心整理的知识巨著
难免会有出错的地方
如果细心的你发现了小失误，可以在下方评论区告诉我，或者私信我！
非常感谢大家的热烈支持！
