OpenEuler部署K8s-1.31.1

主机拓扑图

主机名 ip 内存 硬盘 cpu OS
master 192.168.48.101 5G 100G 2 openEuler-22.03-LTS-SP4
node01 192.168.48.102 5G 100G 2 openEuler-22.03-LTS-SP4
node02 192.168.48.103 5G 100G 2 openEuler-22.03-LTS-SP4

镜像下载地址：OpenEuler-22.03-LTS

下载名为openEuler-22.03-LTS-SP4-x86_64-dvd.iso

基本配置

注意一下你的网卡叫什么，我的是ens33，如果你是其他的记得替换，不要无脑的复制粘贴，看看脚本那些需要改的，目测需要改的是ip这些，还有第三步和第六步

基本配置

操作节点：[所有节点]

1
vi k8s_system_init.sh
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
#!/bin/bash
if [ $# -eq 2 ];then
  echo "设置主机名为：$1"
  echo "ens33设置IP地址为：192.168.48.$2"
else
  echo  "使用方法：sh $0 主机名 主机位"
  exit 2
fi

echo "--------------------------------------"
echo "1.正在设置主机名：$1"
hostnamectl set-hostname $1

echo "2.正在关闭firewalld、selinux"
systemctl disable firewalld &> /dev/null
systemctl stop firewalld
sed -i "s#SELINUX=enforcing#SELINUX=disabled#g" /etc/selinux/config
setenforce 0


echo "3.正在设置ens33：192.168.48.$2"
cat > /etc/sysconfig/network-scripts/ifcfg-ens33 <<EOF
TYPE=Ethernet
PROXY_METHOD=none
BROWSER_ONLY=no
BOOTPROTO=static
DEFROUTE=yes
IPV4_FAILURE_FATAL=no
IPV6INIT=yes
IPV6_AUTOCONF=yes
IPV6_DEFROUTE=yes
IPV6_FAILURE_FATAL=no
NAME=ens33
UUID=53b402ff-5865-47dd-a853-7afcd6521738
DEVICE=ens33
ONBOOT=yes
IPADDR=192.168.48.$2
GATEWAY=192.168.48.2
PREFIX=24
DNS1=192.168.48.2
DNS2=114.114.114.114
EOF
nmcli c reload
nmcli c up ens33


echo "4.新增华为云源、k8s源"
mkdir /etc/yum.repos.d/bak/
cp /etc/yum.repos.d/* /etc/yum.repos.d/bak/
sleep 3
cat <<EOF | tee /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes-new/core/stable/v1.31/rpm/
enabled=1
gpgcheck=1
gpgkey=https://mirrors.aliyun.com/kubernetes-new/core/stable/v1.31/rpm/repodata/repomd.xml.key
EOF
#切换为华为云，下载速度更快
sed -i 's/\$basearch/x86_64/g' /etc/yum.repos.d/openEuler.repo
sed -i 's/http\:\/\/repo.openeuler.org/https\:\/\/mirrors.huaweicloud.com\/openeuler/g' /etc/yum.repos.d/openEuler.repo

echo "5.更新yum源软件包缓存"
 yum clean all && yum makecache

echo "6.添加hosts解析"
cat > /etc/hosts <<EOF
127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
::1         localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.48.101 master
192.168.48.102 node01
192.168.48.103 node02
EOF


echo "7.关闭swap分区"
swapoff -a && sysctl -w vm.swappiness=0 &> /dev/null
sed -ri '/^[^#]*swap/s@^@#@' /etc/fstab


echo "8.安装chrony服务，并同步时间"
yum install chrony -y
systemctl enable chronyd --now
timedatectl set-timezone Asia/Shanghai
timedatectl set-local-rtc 1
timedatectl set-ntp yes
chronyc -a makestep
chronyc tracking
chronyc sources


echo "9.必备工具安装"
yum install wget psmisc vim net-tools telnet socat device-mapper-persistent-data lvm2 git -y

echo "10.重启"
reboot

运行脚本

1
2
3
4
5
6
7
sh k8s_system_init.sh 主机名  主机位

[master] sh k8s_system_init.sh master 101

[node01] sh k8s_system_init.sh node01 102

[node02] sh k8s_system_init.sh node02 103

配置ssh免密

操作节点:[所有节点]

注意修改你的主机密码和主机列表的主机名

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
yum install -y sshpass
cat > sshmianmi.sh << "EOF"
#!/bin/bash
# 目标主机列表
hosts=("master" "node01" "node02")
# 密码
password="Lj201840."
# 生成 SSH 密钥对
ssh-keygen -t rsa -N "" -f ~/.ssh/id_rsa

# 循环遍历目标主机
for host in "${hosts[@]}"
do
    # 复制公钥到目标主机
    sshpass -p "$password" ssh-copy-id -o StrictHostKeyChecking=no "$host"

    # 验证免密登录
    sshpass -p "$password" ssh -o StrictHostKeyChecking=no "$host" "echo '免密登录成功'"
done
EOF

sh sshmianmi.sh

配置内核路由转发及网桥过滤以及安装ipset及ipvsadm

操作节点:[所有节点]

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
sed -i 's/net.ipv4.ip_forward=0/net.ipv4.ip_forward=1/g' /etc/sysctl.conf
cat > /etc/sysctl.d/k8s.conf << EOF
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
net.ipv4.ip_forward = 1
vm.swappiness = 0
EOF
# 配置加载br_netfilter模块
cat <<EOF | sudo tee /etc/modules-load.d/k8s.conf
overlay
br_netfilter
EOF
#加载br_netfilter overlay模块
modprobe br_netfilter
modprobe overlay
sysctl --system
sysctl -p
# 使用新添加配置文件生效
sysctl -p /etc/sysctl.d/k8s.conf
yum -y install ipset ipvsadm
cat > /etc/sysconfig/modules/ipvs.module <<EOF
#!/bin/bash
modprobe -- ip_vs
modprobe -- ip_vs_rr
modprobe -- ip_vs_wrr
modprobe -- ip_vs_sh
modprobe -- nf_conntrack
EOF
#授权、运行、检查是否加载
chmod 755 /etc/sysconfig/modules/ipvs.module &&  /etc/sysconfig/modules/ipvs.module
查看对应的模块是否加载成功
lsmod | grep -e ip_vs -e nf_conntrack_ipv4

containerd容器环境安装

操作节点：[所有节点]

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
#下载所需软件包
wget https://github.com/containerd/containerd/releases/download/v1.7.22/containerd-1.7.22-linux-amd64.tar.gz
wget https://github.com/opencontainers/runc/releases/download/v1.1.15/runc.amd64
wget https://github.com/containernetworking/plugins/releases/download/v1.5.1/cni-plugins-linux-amd64-v1.5.1.tgz

#安装containerd
tar Cxzvf /usr/local containerd-1.7.22-linux-amd64.tar.gz
# 创建服务，所有主机都要操作
cat << EOF > /usr/lib/systemd/system/containerd.service
[Unit]
Description=containerd container runtime
Documentation=https://containerd.io
After=network.target local-fs.target

[Service]
ExecStartPre=-/sbin/modprobe overlay
ExecStart=/usr/local/bin/containerd

Type=notify
Delegate=yes
KillMode=process
Restart=always
RestartSec=5

# Having non-zero Limit*s causes performance problems due to accounting overhead
# in the kernel. We recommend using cgroups to do container-local accounting.
LimitNPROC=infinity
LimitCORE=infinity

# Comment TasksMax if your systemd version does not supports it.
# Only systemd 226 and above support this version.
TasksMax=infinity
OOMScoreAdjust=-999

[Install]
WantedBy=multi-user.target
EOF
systemctl daemon-reload && systemctl enable --now containerd

#安装runc
install -m 755 runc.amd64 /usr/local/sbin/runc
#安装cni
mkdir -p /opt/cni/bin && tar -xzf cni-plugins-linux-amd64-v1.5.1.tgz -C /opt/cni/bin/

#生成容器配置文件
mkdir -p /etc/containerd && containerd config default > /etc/containerd/config.toml
sed -i 's#sandbox_image = "registry.k8s.io/pause:.*"#sandbox_image = "registry.aliyuncs.com/google_containers/pause:3.10"#' /etc/containerd/config.toml
sed -i 's/SystemdCgroup = false/SystemdCgroup = true/g' /etc/containerd/config.toml

cat >/etc/crictl.yaml <<"EOF"
runtime-endpoint: unix:///run/containerd/containerd.sock
image-endpoint: unix:///run/containerd/containerd.sock
timeout: 10
debug: false
EOF

#配置containerd镜像加速
# 修改 /etc/containerd/config.toml 中的 config_path
sed -i 's|^  config_path =.*$|  config_path = "/etc/containerd/certs.d"|' /etc/containerd/config.toml

# 创建必要的目录
mkdir -p /etc/containerd/certs.d/docker.io
mkdir -p /etc/containerd/certs.d/registry.k8s.io

# 配置 docker.io 的 hosts.toml
cat <<EOF > /etc/containerd/certs.d/docker.io/hosts.toml
server = "https://docker.io"
[host."https://docker.m.daocloud.io"]
  capabilities = ["pull", "resolve"]
[host."https://reg-mirror.giniu.com"]
  capabilities = ["pull", "resolve"]
EOF

# 配置 registry.k8s.io 的 hosts.toml
cat <<EOF > /etc/containerd/certs.d/registry.k8s.io/hosts.toml
server = "https://registry.k8s.io"
[host."https://k8s.m.daocloud.io"]
  capabilities = ["pull", "resolve", "push"]
EOF

# 重启 containerd 服务
systemctl daemon-reload
systemctl restart containerd.service

安装K8s1.31.1

操作节点:[所有节点]

不出意外第一步安装的就是1.31.1的版本

1
2
3
4
5
6
yum install -y kubelet kubeadm kubectl --disableexcludes=kubernetes
#  配置kubelet为了实现docker使用的cgroupdriver与kubelet使用的cgroup的一致性，建议修改如下文件内容。所有节点均要安装
sed -i 's/^KUBELET_EXTRA_ARGS=/KUBELET_EXTRA_ARGS="--cgroup-driver=systemd"/g' /etc/sysconfig/kubelet

#设置kubelet为开机自启动即可，由于没有生成配置文件，集群初始化后自动启动
systemctl enable kubelet --now

开始安装K8s

操作节点:[master]

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
kubeadm config print init-defaults > /etc/kubernetes/init-default.yaml

# 修改为国内阿里源
sed -i 's/registry.k8s.io/registry.aliyuncs.com\/google_containers/' /etc/kubernetes/init-default.yaml

# 设置 apiServerIP 地址. 请自行替换192.168.48.101为自己master的IP
sed -i 's/1.2.3.4/192.168.48.101/' /etc/kubernetes/init-default.yaml

sed -i '/serviceSubnet: 10.96.0.0\/12/a \  podSubnet: 192.168.0.0/16' /etc/kubernetes/init-default.yaml

sed -i 's/1.31.0/1.31.1/g' /etc/kubernetes/init-default.yaml
#拉取所需镜像
kubeadm config images pull --config /etc/kubernetes/init-default.yaml

kubeadm init --image-repository registry.aliyuncs.com/google_containers --upload-certs

如果要重置集群，或者报错则运行以下命令，报错了就找原因看看哪里出错了

1
2
3
4
5
6
kubeadm reset
[reset] Are you sure you want to proceed? [y/N]: y
#输入Y

sudo rm -rf /etc/kubernetes/manifests/*
sudo iptables -F && sudo ipvsadm --clear

初始化后运行以下命令

1
2
3
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config

加入node节点

1
kubeadm token create --print-join-command

生成以下信息

1
kubeadm join 192.168.48.101:6443 --token mxybd6.j56dbce9cy698ejr --discovery-token-ca-cert-hash sha256:c1b1c7248f6aeea4d01244a226489958bfaaaa76926077b5c09b143c760b68e9

将这个命令复制给node01和node02运行就可以加入集群了

安装网络插件

1
2
3
4
5
echo '185.199.108.133 raw.githubusercontent.com' >> /etc/hosts
curl https://raw.githubusercontent.com/projectcalico/calico/v3.25.1/manifests/calico.yaml -O
sed -i '/- name: WAIT_FOR_DATASTORE/i \ \ \ \ \ \ \ \ \ \ \ \ - name: IP_AUTODETECTION_METHOD\n              value: interface=ens33' calico.yaml
sed -i 's| docker.io/calico/| registry.cn-hangzhou.aliyuncs.com/qianyios/|' calico.yaml
kubectl apply -f calico.yaml

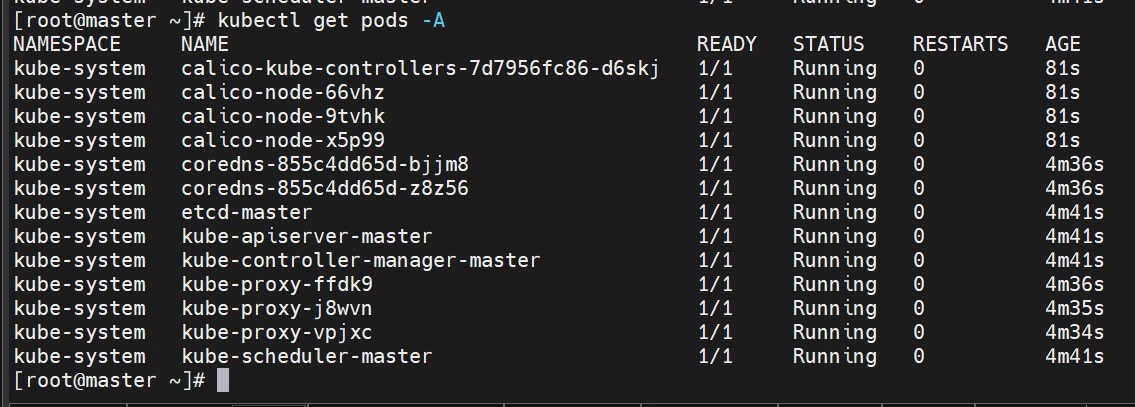

等待十几分钟这样子，就出现以下全部ready和running就说明K8s集群部署成功

1
kubectl get pods -A

image-20241008204558946

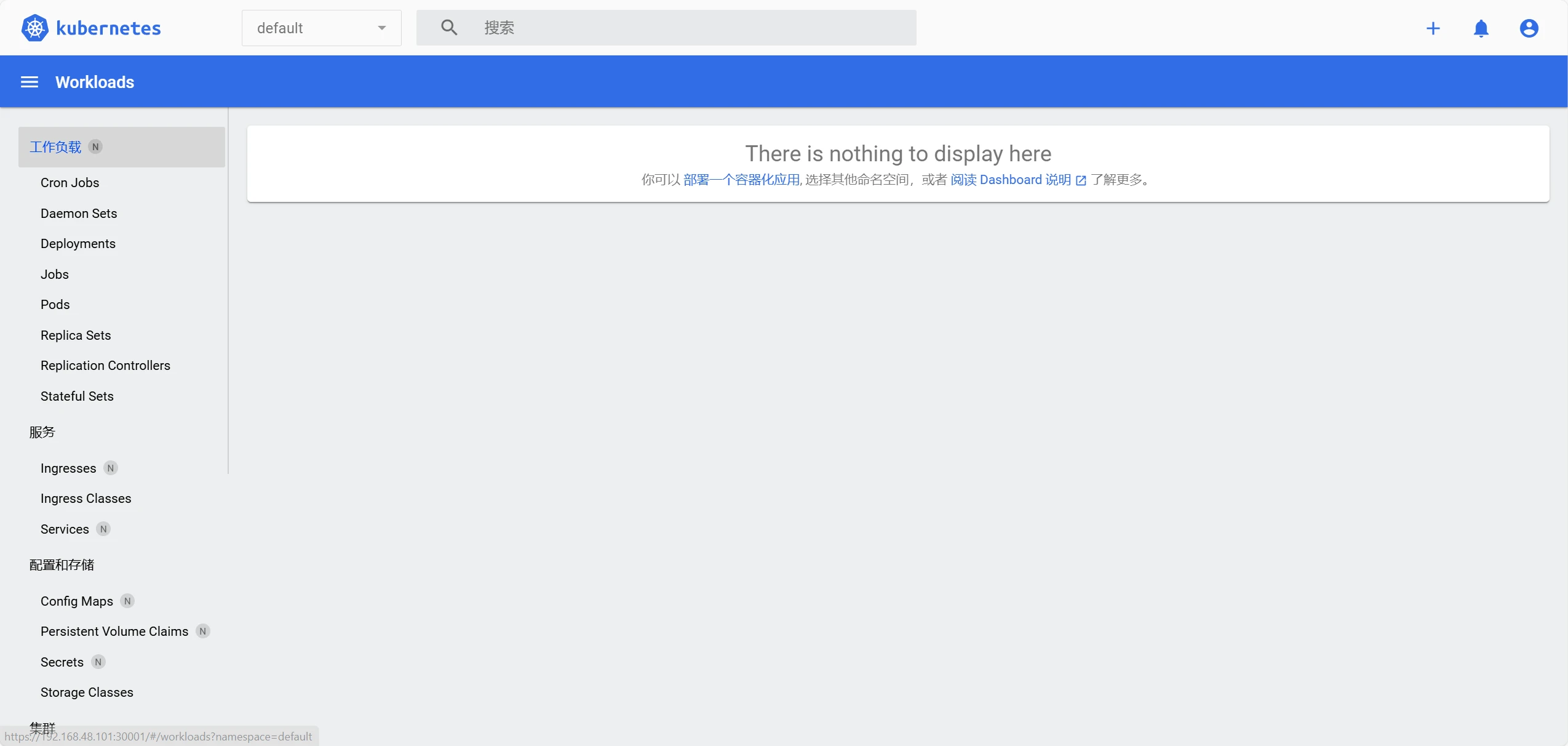

K8S-dashboard

配置yaml

1
2
3
wget https://raw.githubusercontent.com/kubernetes/dashboard/v2.7.0/aio/deploy/recommended.yaml
sed -i 's/kubernetesui\/dashboard:v2.7.0/registry.cn-hangzhou.aliyuncs.com\/qianyios\/dashboard:v2.7.0/g' recommended.yaml
sed -i 's/kubernetesui\/metrics-scraper:v1.0.8/registry.cn-hangzhou.aliyuncs.com\/qianyios\/metrics-scraper:v1.0.8/g' recommended.yaml

修改配置文件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
vim recommended.yaml
---
kind: Service
apiVersion: v1
metadata:
  labels:
    app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
spec:
  ports:
    - port: 443
      targetPort: 8443
      nodePort: 30001
  type: NodePort
  selector:
    app: kubernetes-dashboard

---

运行

1
kubectl apply -f recommended.yaml

创建cluster-admin用户

1
2
3
4
5
6
7
#创建service account并绑定默认cluster-admin管理员群角色
#创建用户
kubectl create serviceaccount dashboard-admin -n kubernetes-dashboard
#用户授权
kubectl create clusterrolebinding dashboard-admin --clusterrole=cluster-admin --serviceaccount=kubernetes-dashboard:dashboard-admin
#获取用户Token
kubectl create token dashboard-admin -n kubernetes-dashboard

记录token

1
eyJhbGciOiJSUzI1NiIsImtpZCI6IjhsSUtJbk93YU5xR1V2ZndOS0lFMnpVLVR1cEl1YUF5U0JBd2NRUXFHVE0ifQ.eyJhdWQiOlsiaHR0cHM6Ly9rdWJlcm5ldGVzLmRlZmF1bHQuc3ZjLmNsdXN0ZXIubG9jYWwiXSwiZXhwIjoxNzI4Mzk1MzcxLCJpYXQiOjE3MjgzOTE3NzEsImlzcyI6Imh0dHBzOi8va3ViZXJuZXRlcy5kZWZhdWx0LnN2Yy5jbHVzdGVyLmxvY2FsIiwianRpIjoiYjA5NjA2OTEtNTVkNy00YzhmLTliZGItZDRkNzljYTU0YTJiIiwia3ViZXJuZXRlcy5pbyI6eyJuYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsInNlcnZpY2VhY2NvdW50Ijp7Im5hbWUiOiJkYXNoYm9hcmQtYWRtaW4iLCJ1aWQiOiIwYzU0YWE0OC0zYTFkLTQyNmYtODI5ZS01ODVjZWNjMzEyYjAifX0sIm5iZiI6MTcyODM5MTc3MSwic3ViIjoic3lzdGVtOnNlcnZpY2VhY2NvdW50Omt1YmVybmV0ZXMtZGFzaGJvYXJkOmRhc2hib2FyZC1hZG1pbiJ9.dYb1MRmrKqNSTs2SKGsXZT_Nq4xtt3JeQEXOaHIjvFNtn_iCk1qTuY6oUBE8xdRv4S1oyqb52udGj0Zb5gYpMEBIfpQxTL_KJkeR-1S-tyl2U1FsH6UCnPE_j7KWh5suU3YJncIhQ26Ei7hC12WuZ9l-_UD3mL2tEPzwjbhnT0qir2Qe4rqrSJNNSQHrtwNVD2O-zv13VaUx6azXArec2GPDYR5ZYbSqMXuklaelwtZoKPLzP0DFnZy4jJ4n1JM7PRzqS5sWT_2nMgpSFZ_a5E0b7knvcNvyQHgHzeIYTrY88wjaCQi3x3cIn2hUvtVsroZySjx3Mz-ZECco5WN-eQ

浏览器访问即可并输入以上token

1
https://192.168.48.101:30001/

image-20241008205011179

至此K8s-1.31.1部署完成

特别声明
千屹博客旗下的所有文章，是通过本人课堂学习和课外自学所精心整理的知识巨著
难免会有出错的地方
如果细心的你发现了小失误，可以在下方评论区告诉我，或者私信我！
非常感谢大家的热烈支持！
